De-coring machines, De-coring Stations, Decoring units, Casting decoring systems, De-coring of castings

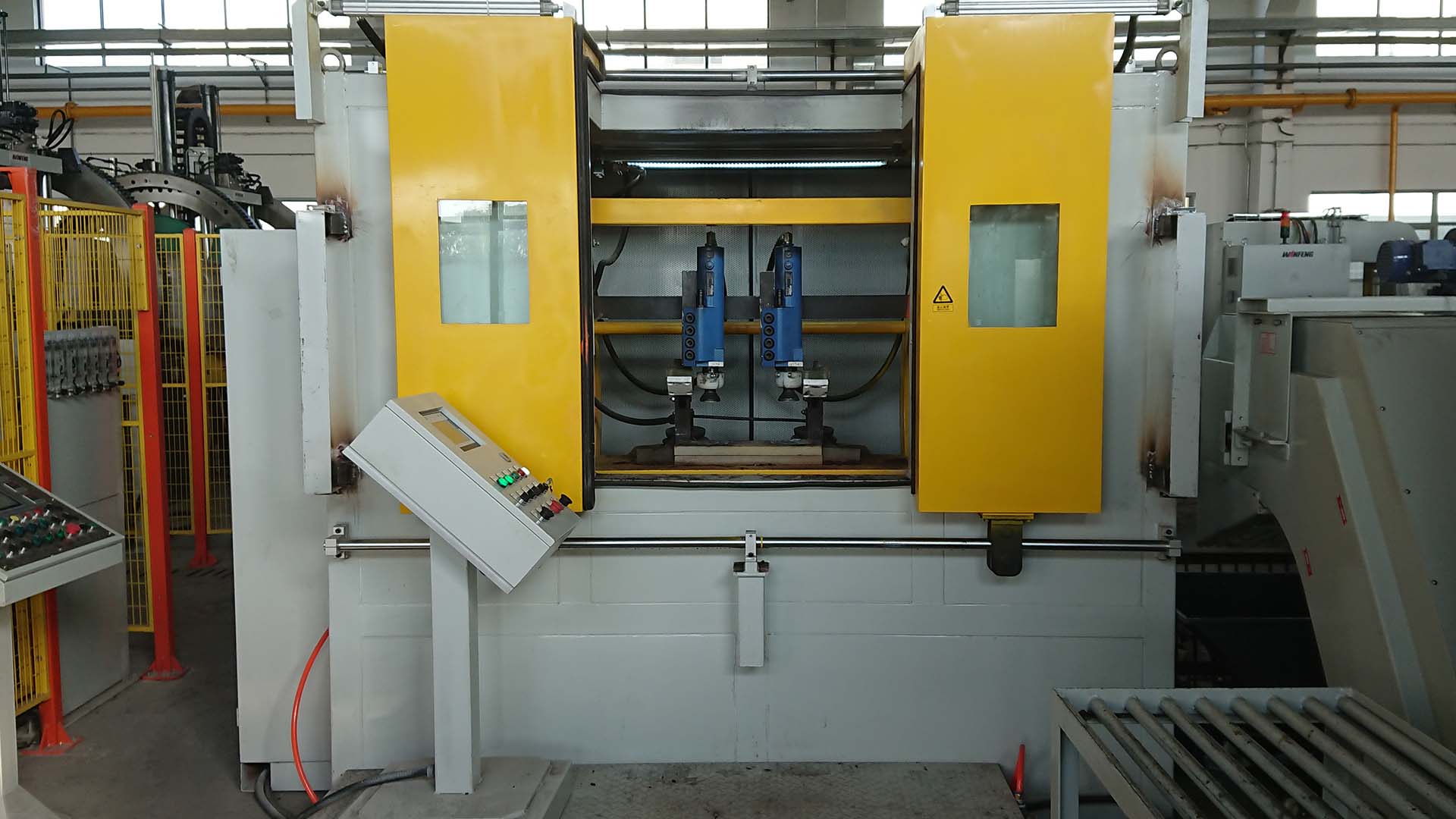

De-coring Machine,

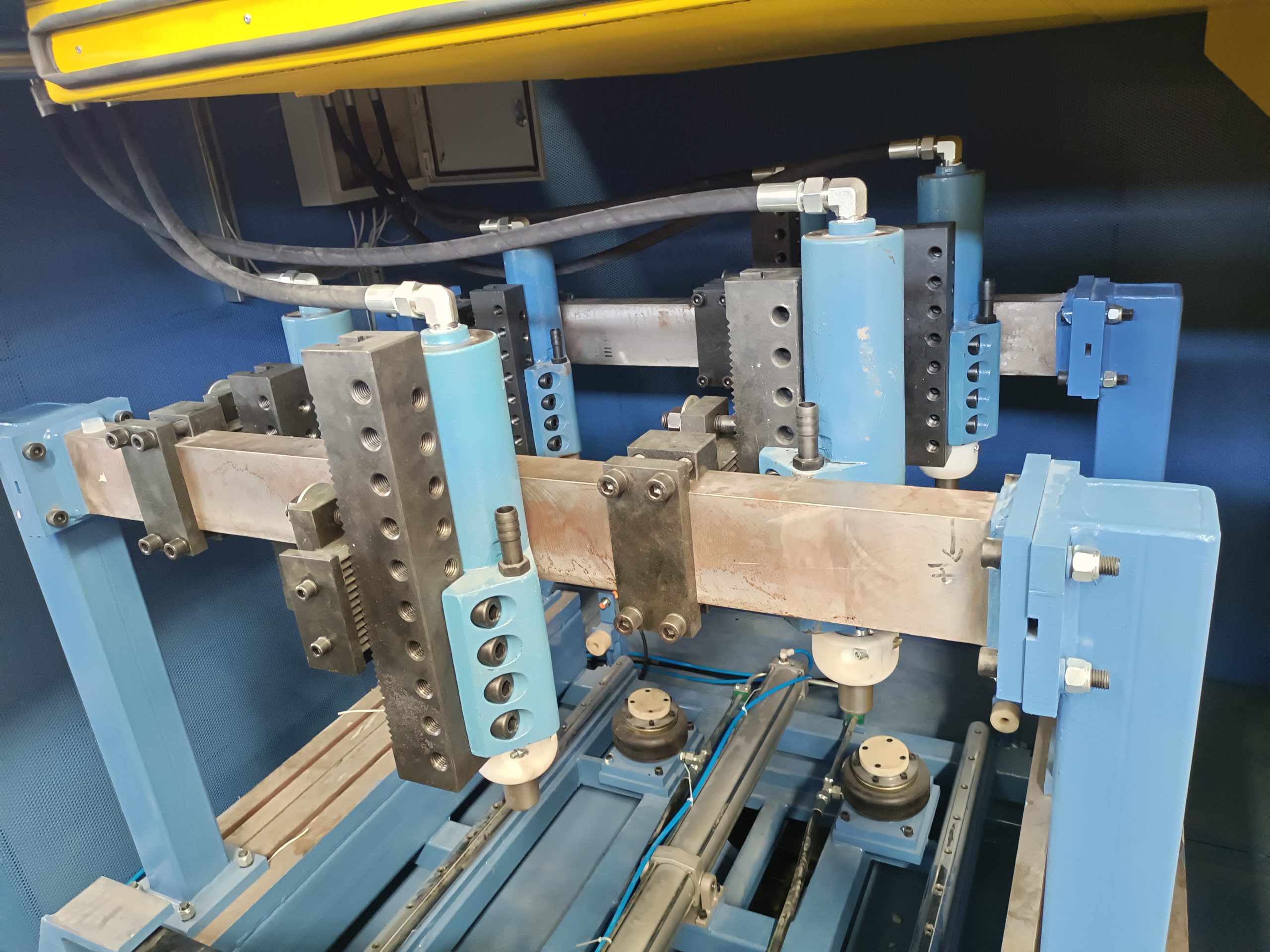

De-coring Station

The casting Decoring Machine is mainly used for cleaning sand cores of various aluminum alloy castings with complex cavities. Pump body, casing, and other castings.

Working Principle of Decoring Machine
Decoring Machine Applied to Honda

The casting Decoring Machine/De-coring Station is an advanced structure, high-efficiency production of sand core removal equipment for non-ferrous metal castings. It is mainly used for cleaning sand cores of various aluminum alloy castings with complex cavities. Pump body, casing, and other castings.

De-coring is fast and reliable, short cycle time, safe and environmentally friendly, has high efficiency, has low energy consumption, is suitable for mass production of various scale product lines, and can be connected to the advantages of various production lines.

What is De-coring Machine?

The decoring machine is a type of specialized equipment used in foundries and metalworking industries for removing sand cores from castings. Decoring machines use a combination of mechanical, pneumatic, and hydraulic mechanisms to knock out the cores from the castings efficiently. They are highly automated and can process a large number of castings in a short amount of time, significantly improving the productivity of the casting process. Decoring machines come in various sizes and capacities, ranging from smaller machines suitable for low to medium-production environments to larger machines for high-volume production environments. They can be customized to meet specific casting requirements and integrated with other foundry equipment for a streamlined operation. Decoring machines require specialized maintenance and skilled operators to ensure safe and efficient operation.

Pros

  • Decoring machines significantly improve the efficiency and productivity of the casting process in high volume production environments.
  • They reduce labor costs by eliminating the need for manual decoring, which often requires skilled labor and is time-consuming.
  • Decoring machines improve the overall quality of the finished casting by reducing defects and inconsistencies caused by manual decoring.
  • They can be customized to meet specific casting requirements and integrate with other foundry equipment for a more streamlined operation.

Cons

  • Decoring machines can be a costly investment depending on the type and level of automation required.
  • They require specialized maintenance and skilled operators to ensure safe and efficient operation.
  • Decoring machines are often bulky and take up a considerable amount of space in the foundry.

Applications

  • Foundries and metalworking industries primarily use decoring machines to remove sand cores from castings, including engine blocks, cylinder heads, and other complex shapes.
  • They are ideal for high volume production environments where efficiency and productivity are essential.
  • Decoring machines are commonly used in the automotive and aerospace industries, where complex and precise castings are required.

Read More: Best Guide to Decoring Hammer

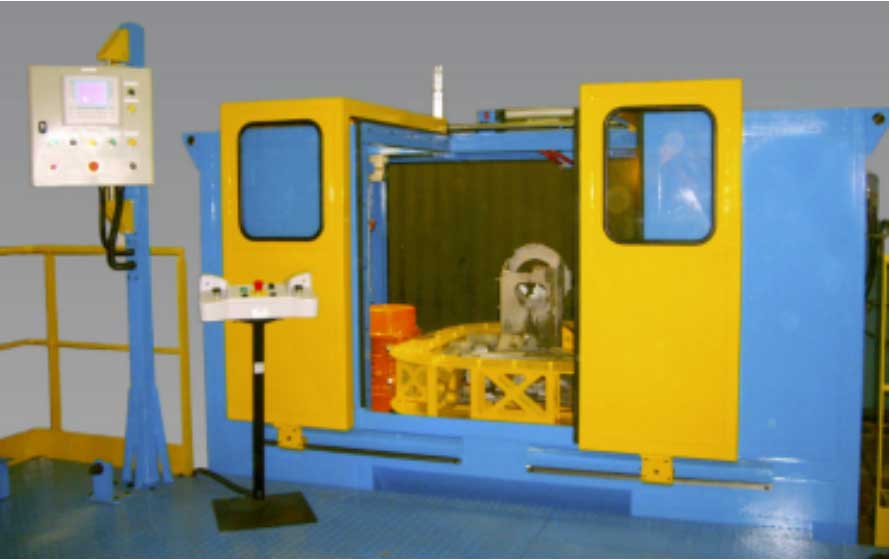

Decoring machine

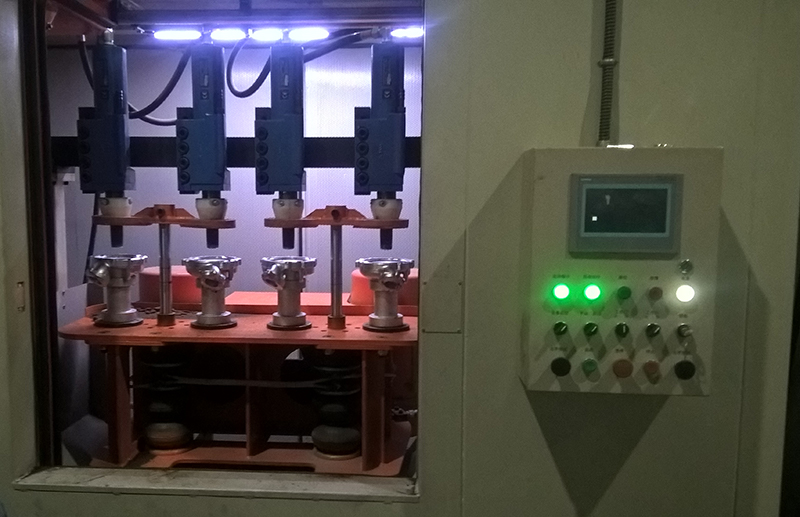

Working Principle of De-coring Machine

The sand core is separated from the surface of the casting

  • Place the casting in a pneumatic clamp to clamp;

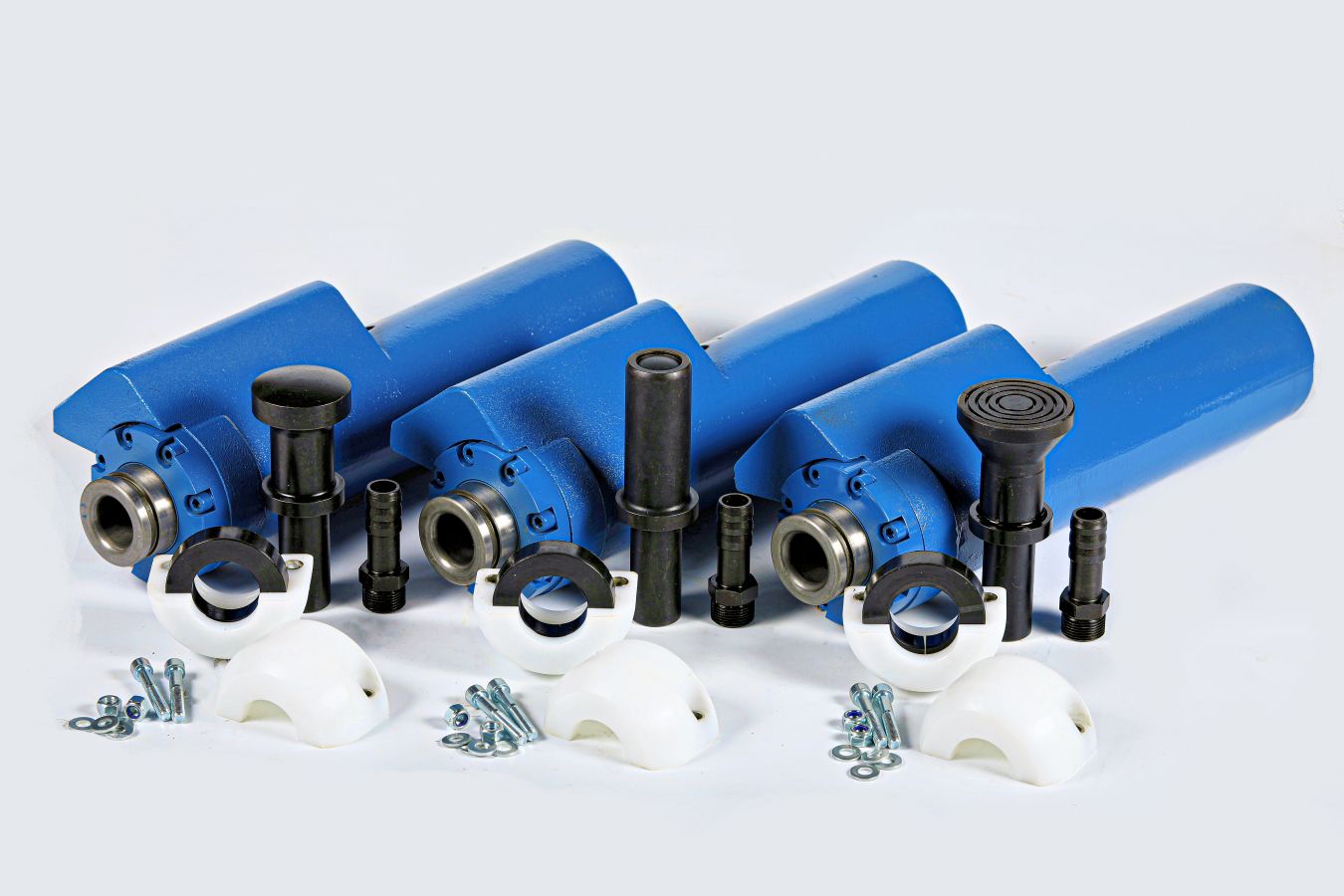

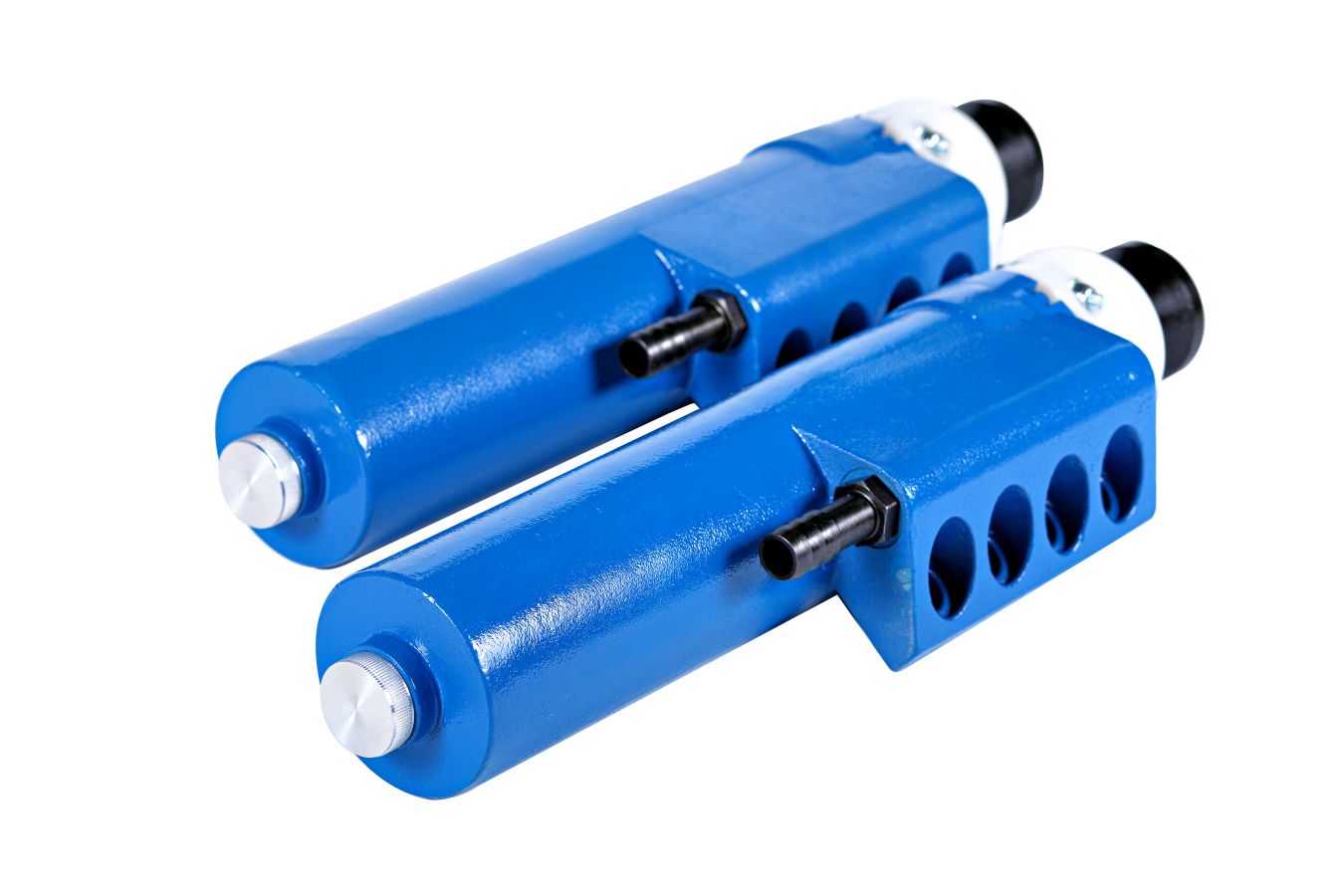

  • High-frequency hammering with a De-coring hammer;
  • The sand core is separated from the surface of the casting and cracked into blocks.

Fragmentation and removal of sand core

  • The vibration motor vibrates at a high frequency, which generates a high acceleration and breaks the sand core;
  • At the bottom of the machine, waste sand is collected through a belt.

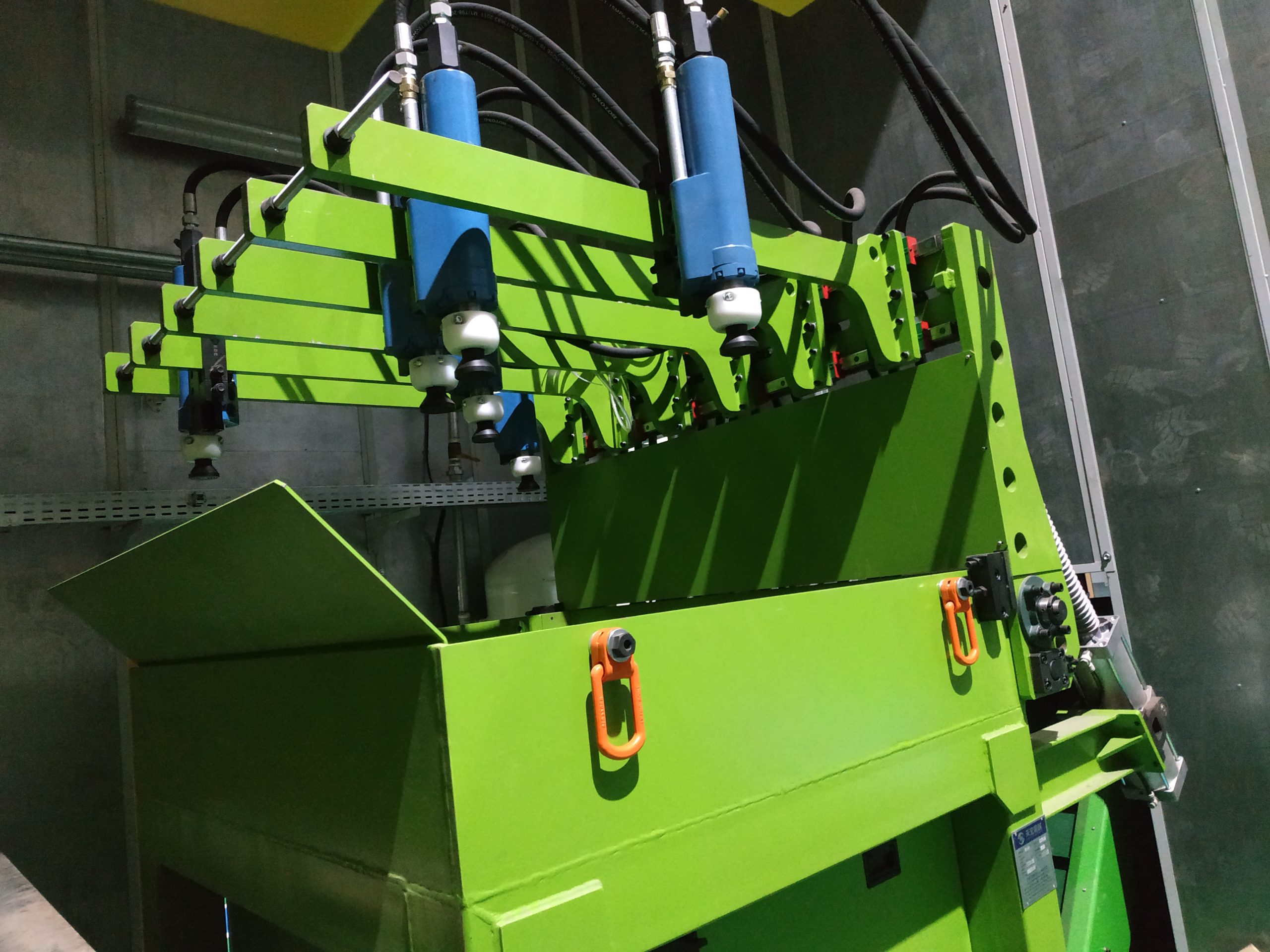

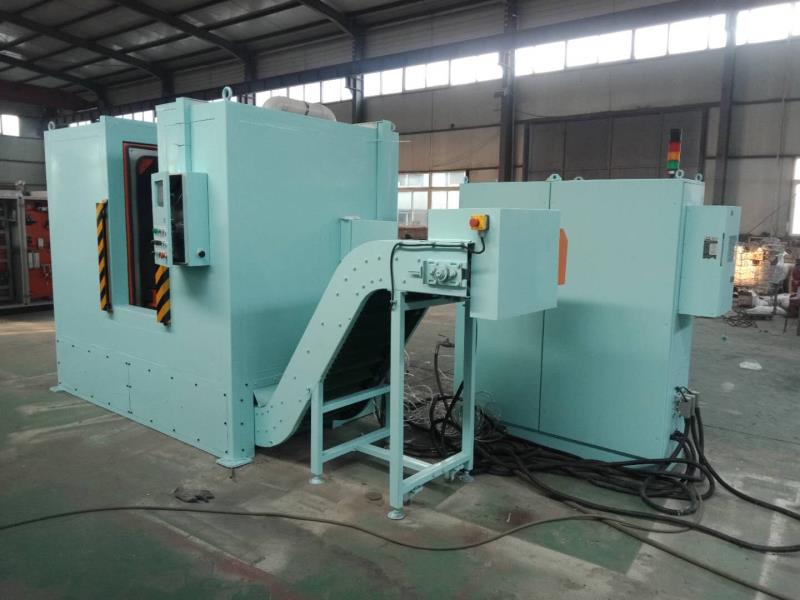

Vertical Dump De coring machines
Vertical Dump De-coring machines/De-coring Station

5 Features of De-coring Machine

Decoring machine is a highly automated system used in foundries and metalworking industries for removing sand cores from castings.
It uses a combination of mechanical, pneumatic, and hydraulic mechanisms to knock out the cores from the castings efficiently.
Decoring machines often come equipped with robotic arms and advanced sensors to detect the location and size of the cores.
They may also have multiple decoring stations for high production environments and can be integrated with other foundry equipment for a seamless operation.

  • Robust and reliable, simple operation;
  • Low noise and little impact on the environment;
  • Reduce labor costs and improve production efficiency;
  • Suitable for large, medium, and small batch production;
  • Easy to connect to various production lines.

Specification of Decoring Machine/De-coring Station

NameLevel Decoring machineVertical Decoring machineVertical Dump Decoring machine
Placement methodVerticalLevelLevel
Hammer directionLevelVerticalVertical
Principle1. Operation mode: manual, fully automatic
2. Set up a soundproof protection room
3. Configure more than 2 decoring hammers
1. Operation mode: manual, fully automatic
2. Set up a soundproof protection room
3. Configure more than  2 decoring hammers
4. The working platform is equipped with a shock absorption mechanism
1. Operation mode: manual, fully automatic
2. Hammering and flipping are performed simultaneously
3. Set up a soundproof protection room
4. Configure more than 2 decoring hammers
5. The working platform is equipped with a shock absorption mechanism
6. Set up a turnover mechanism
Station>=2>=2>=2
Features1. The sand flows out smoothly during the hammering process2. There is basically no need for manual secondary processing1. Good compatibility of castings
2. The bottom tooling of the casting is easy to make
3. Good casting stability
1. Good compatibility of castings
2. The bottom tooling of the casting is easy to make
3. Good casting stability
4. The sand flows out smoothly during the hammering process, and the castings have no residual sand
Lack1. Poor compatibility of castings
2. It is difficult to fix the casting3. Poor casting stability
Some castings need manual sand pour processing when picking up parts1. The price is higher
2. The equipment is large

Working video of casting De-coring machine

Working video of Honda car casting decoring machine
Working video of copper alloy faucet casting decoring machine

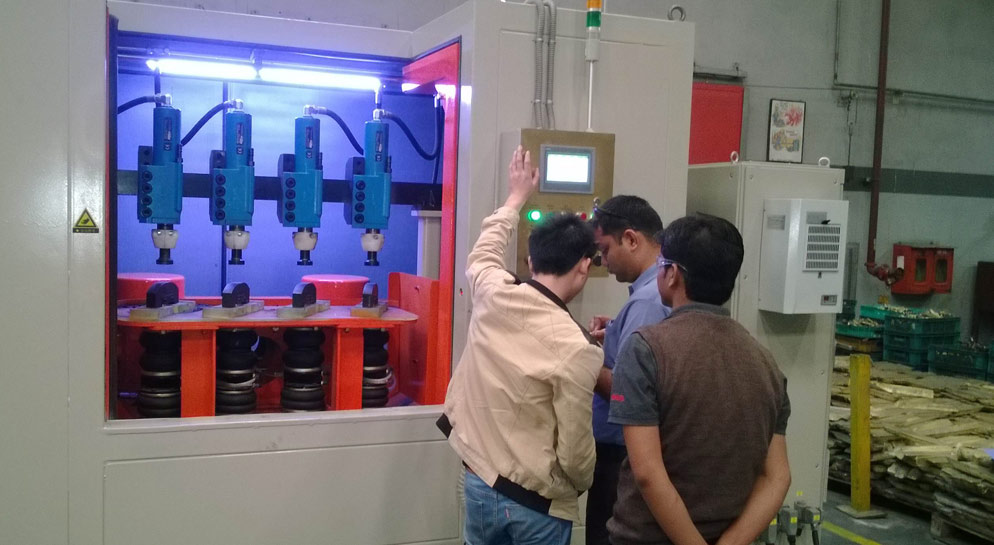

Decoring machine applied to Kohler, India
Decoring machine applied to Kohler, India

How is the sand taken out from the de-coring machine?

  • Method 1: There is a trolley for receiving sand under the equipment, and the sand falls into the trolley. When the trolley is full, the trolley is manually transported away and the sand is returned to the trolley for recycling.
  • The second method: A belt conveyor is installed under the equipment, and the belt conveyor is equipped with a sandbox outside the equipment. The sand is transported from the bottom of the equipment to the sandbox outside the equipment.

The method of conveying waste sand by belt conveyor is the best choice for waste sand collection.

How to consult more accurately

You can provide us with the dimensional data of the workpiece (the best in three dimensions, the outer dimension of the workpiece is not the least, and the size of the largest workpiece) so that I can provide a complete equipment design plan and dimensional data based on the above information.

Three-dimensional data: X-T general format

Decoring Machine Manufacturer
Decoring Machine Manufacturer

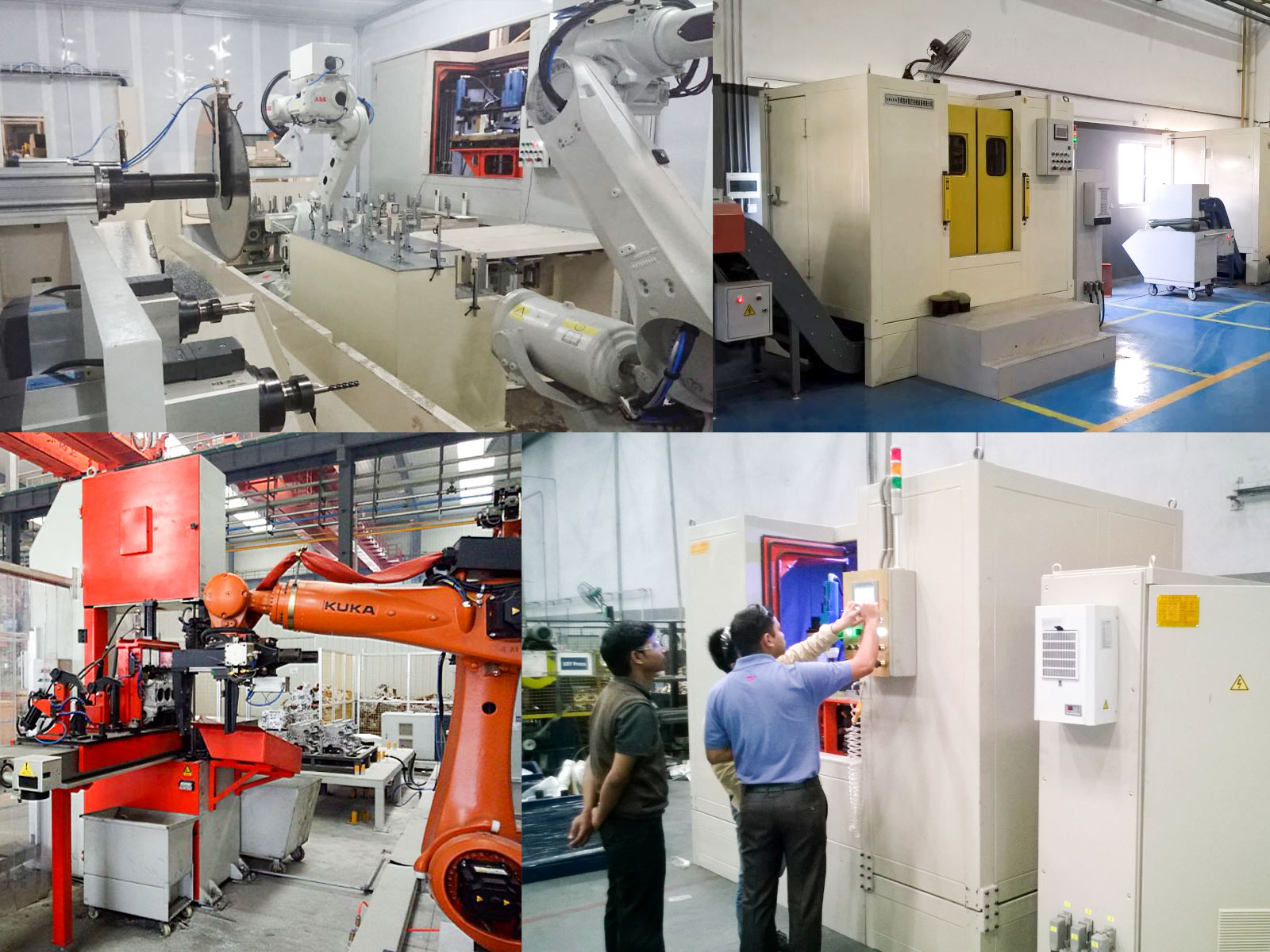

About the De-coring Machine Manufacturer

We are a specialized enterprise of automatic casting cleaning equipment, focusing on the design, development, and production of intelligent robot finishing of steel castings and non-ferrous metal castings such as aluminum and copper.

KCE has developed a highly flexible and intelligent automatic casting robot cleaning production line and the robot finishing unit, which are mainly used for the post-cleaning procedures of steel castings and aluminum castings, providing Vibration shakeout machine, casting decoring systems, pouring riser cutting, deburring, and polishing And other continuous robotic automation solutions

KCE designs and manufactures a complete robot cleaning automatic production line and a robot finishing unit that can automatically process all the casting cleaning steps. Combined with industrial robots, it provides the most perfect solution for the post-finishing and cleaning of castings. All finishing units will be individually designed in accordance with the capacity and tempo provided by the customer and other technical data.

  • Automated cleaning unit: high-frequency vibration de-coring machine (aluminum alloy castings), vibration de-coring machine (cast iron cylinder block, cylinder head), high-speed vertical band sawing machine, casting riser CNC cutting sawing machine, casting intelligent grinding machine.
  • Robot intelligent cleaning unit: robot casting core removal center, robot pouring riser cutting center (high-speed circular saw, high-speed vertical band saw), robot deburring and polishing center.
  • Robotic cleaning automated production line: Provide continuous robotic automated production lines such as vibration sand shaking, sand de-coring, pouring riser cutting, deburring, and polishing.
