4 Models of Magnetic Particle Brakes

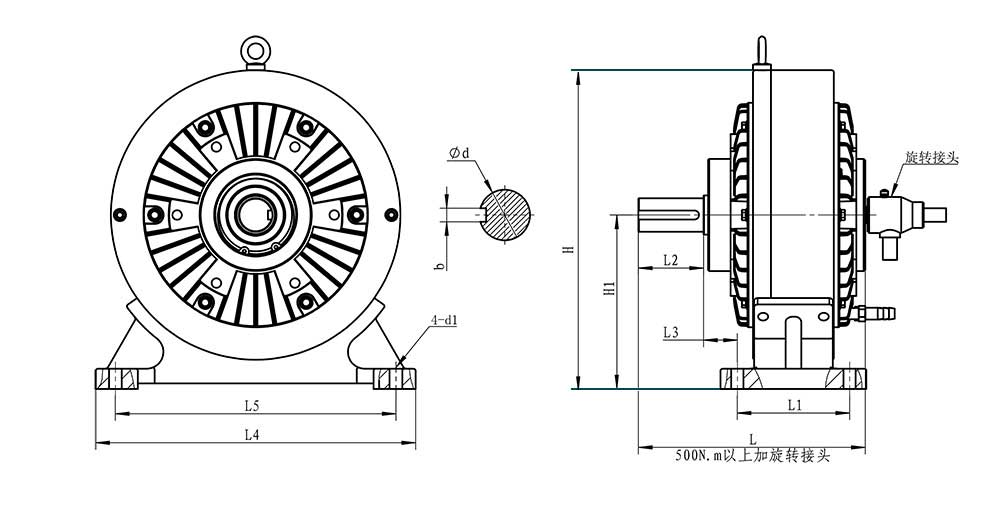

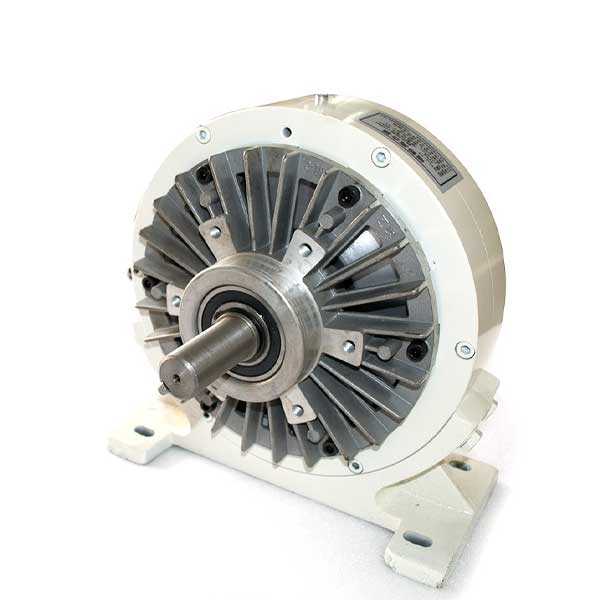

MPB-S Magnetic Particle Brakes

Model	Rated torque(N.m)	Exciting current(A)	Allowable slip power(KW)	Weight(kg)	d	H1	L	L1	L5	L4	H	L2	L3	d1	b
MPB-S-0.2	2	0.4	0.2	3	12	72	94	60	110	125	132	31	37	6.5	4
MPB-S-0.6	5	0.5	0.5	4	12	72	94	60	110	125	132	31	23	6.5	4
MPB-S-1.2	10	0.6	0.8	7	15	90	108	70	155	180	160	30	16	9	5
MPB-S-2.5	20	0.8	2	15	20	100	140	85	130	200	185	40	30	11	6
MPB-S-5	50	0.8	4	20	25	150	178	110	185	240	260	57	14	11	8
MPB-S-10	100	1	8	45	30	150	235	120	185	260	283	65	41.5	13	8
MPB-S-20	200	1.6	10	65	35	180	225	125	268	320	335	65	30.5	13	10
MPB-S-30	300	2.0	12	120	45	200	251	150	300	350	375	70	23	13	14
MPB-S-40	400	2.0	12	120	45	200	251	150	300	350	375	70	23	13	14
MPB-S-50	500	2.5	15	200	60	240	380	230	340	420	440	100	53	17	18
MPB-S-100	1000	2.5	20	240	60	280	382	220	430	500	520	100	37	17	18
MPB-S-200	2000	3	30	410	75	325	433	250	520	600	609	110	50	22	20
MPB-S-500	5000	5	50	960	90	430	536	320	600	700	824	140	50	22	25
MPB-S-1000	10000	5	60	1800	120	600	720	360	900	1030	1125	160	59	26	32

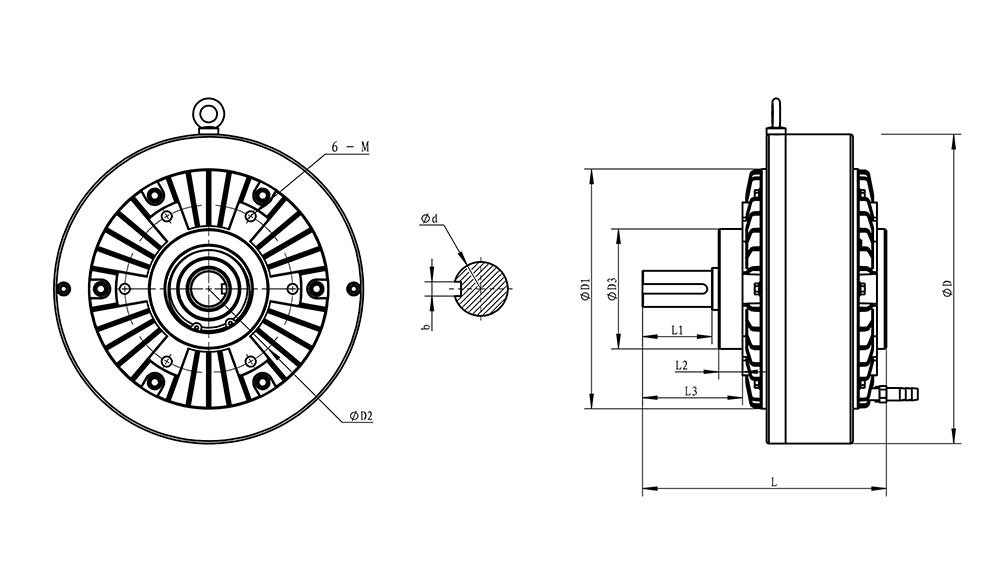

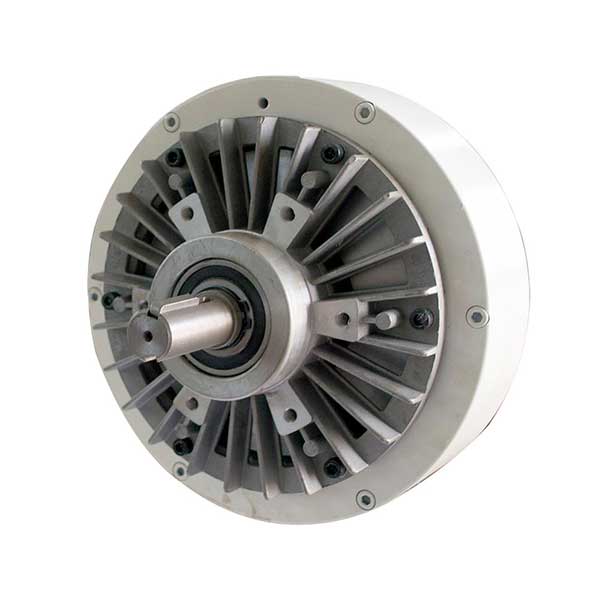

MPB-F Magnetic Particle Brakes

Model	Rated torque(N.m)	Exciting current(A)	Allowable slip power(KW)	Weight(kg)	d	H1	L	L1	L5	L4	H	L2	L3	d1	b
MPB-F-0.2	2	0.4	0.2	3	12	72	94	60	110	125	132	31	37	6.5	4
MPB-F-0.6	5	0.5	0.5	4	12	72	94	60	110	125	132	31	23	6.5	4
MPB-F-1.2	10	0.6	0.8	7	15	90	108	70	155	180	160	30	16	9	5
MPB-F-2.5	20	0.8	2	15	20	100	140	85	130	200	185	40	30	11	6
MPB-F-5	50	0.8	4	20	25	150	178	110	185	240	260	57	14	11	8
MPB-F-10	100	1	8	45	30	150	235	120	185	260	283	65	41.5	13	8
MPB-F-20	200	1.6	10	65	35	180	225	125	268	320	335	65	30.5	13	10
MPB-F-30	300	2.0	12	120	45	200	251	150	300	350	375	70	23	13	14
MPB-F-40	400	2.0	12	120	45	200	251	150	300	350	375	70	23	13	14
MPB-F-50	500	2.5	15	200	60	240	380	230	340	420	440	100	53	17	18
MPB-F-100	1000	2.5	20	240	60	280	382	220	430	500	520	100	37	17	18
MPB-F-200	2000	3	30	410	75	325	433	250	520	600	609	110	50	22	20
MPB-F-500	5000	5	50	960	90	430	536	320	600	700	824	140	50	22	25
MPB-F-1000	10000	5	60	1800	120	600	720	360	900	1030	1125	160	59	26	32

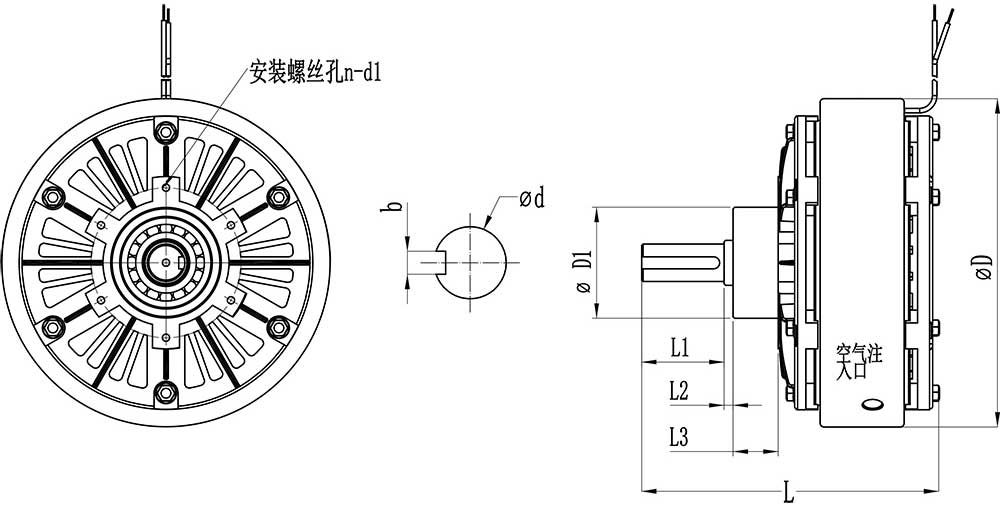

MPB-FF Magnetic Particle Brakes

Model	Rated torque N.m	Allowable slip power W	Maximum current A	Maximum Speed rpm	D	L	d(h7)	b	L1	L2	L3	D1(g7)	D2	n-d1*depth
MPB-FF-0.6	0.6	20	0.46	1500	88	90	8	3	22	4	15	33	55	6-M5*10
MPB-FF-3	3	50	0.53	1500	12	108	10	3	22	6	14	42	64	6-M5*10
MPB-FF-6	6	95	0.81	1500	134	122	12	4	26	6	14	42	64	6-M5*10
MPB-FF-12	12	140	0.94	1500	152	145	15	5	29	5	15	42	64	6-M6*10
MPB-FF-25	25	220	1.24	1500	182	173	20	6	43	4	17	55	78	6-M6*10
MPB-FF-50	50	330	2.15	1500	219	205	25	8	55	6	30	74	100	6-M6*10
MPB-FF-100	100	480	2.4	1500	278	252	30	8	65	7	28	100	140	6-M10*15
MPB-FF-200	200	750	2.63	1000	327	295	35	10	69	10	30	110	150	6-M10*15
MPB-FF-400	400	1100	3.31	1000	395	355	45	14	92	12.5	35	130	200	8-M12*20
MPB-FF-630	630	1600	3.5	900	486	400	55	16	105	10	40	150	260	8-M12*25
MPB-FF-1200	1200	2200	3.91	800	530	460	65	18	105	10	45	170	260	8-M12*30

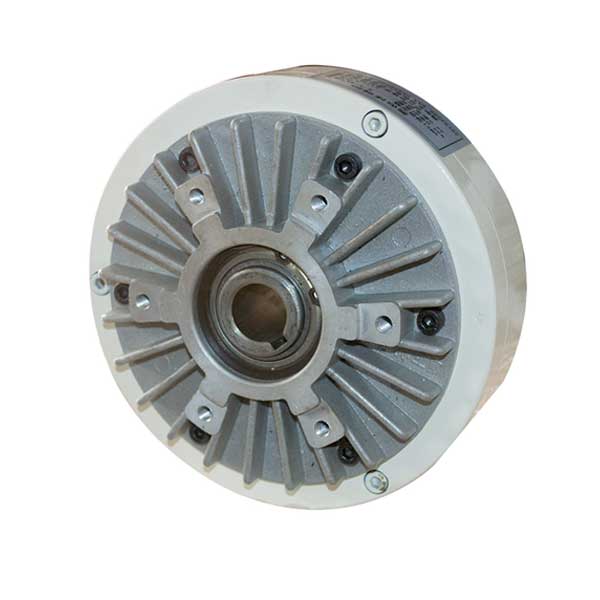

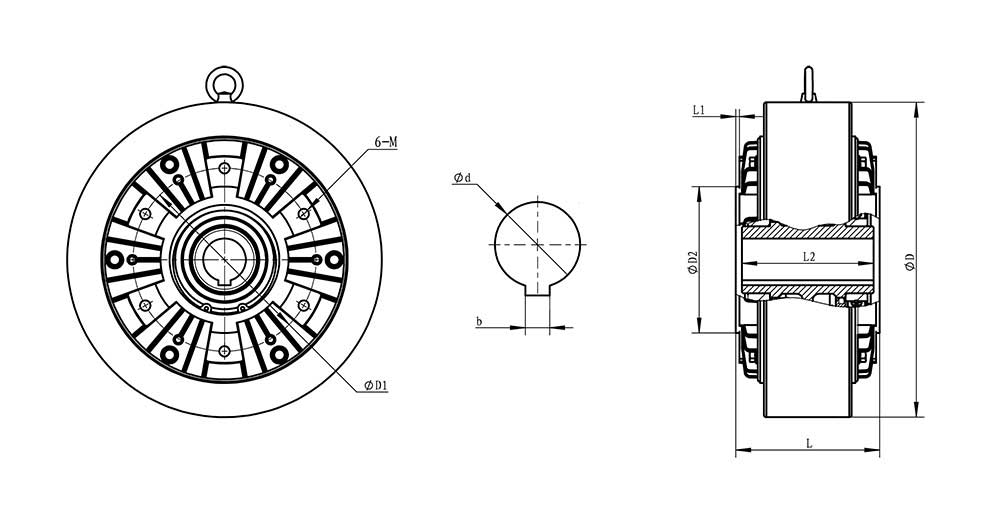

MPB-H Magnetic Particle Brakes

Model	Rated torque(N.m)	Exciting current(A)	Allowable slip power(KW)	Weight(kg)	d	D	D1	D2(h6)	L	L1	b	M
MPB-H-0.6	6	0.5	0.4	3	16	120	62	52	55	3	5	6-M6
MPB-H-1.2	12	0.6	0.5	5	20	152	88	72	78	3	6	6
MPB-H-2.5	25	0.6	0.6	12	25	170	105	90	82	4	8	6
MPB-H-5	50	1	1.2	17	30	220	130	110	96	3	8	8
MPB-H-10	100	1.2	4	35	40	266	182	135	120	4	12	10
MPB-H-20	200	20	5	55	45	310	220	180	154	5	14	10
MPB-H-30	300	2.5	6	80	50	350	195	165	190	6	14	10
MPB-H-40	400	2.5	6	80	50	350	195	165	190	6	14	10
MPB-H-50	500	2.5	8	150	60	400	200	175	212	8	18	12
MPB-H-100	1000	2.5	10	200	60	480	210	185	252	8	18	12
MPB-H-200	2000	3	15	350	75	568	210	185	286	8	20	12
