4 Modules of Magnetic Particle Clutches

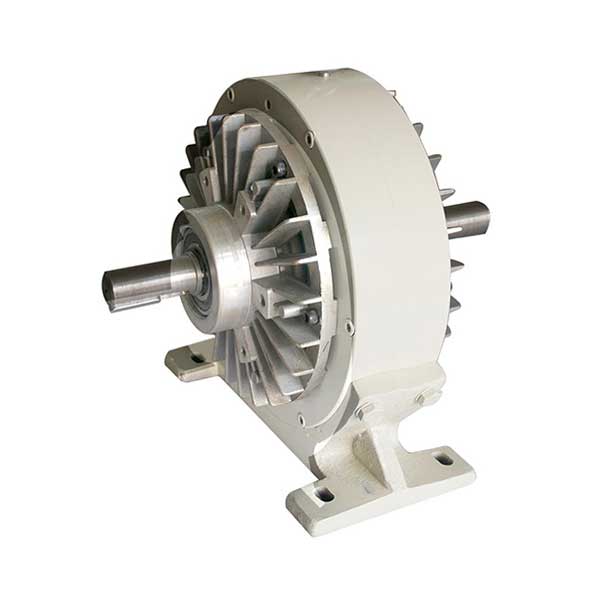

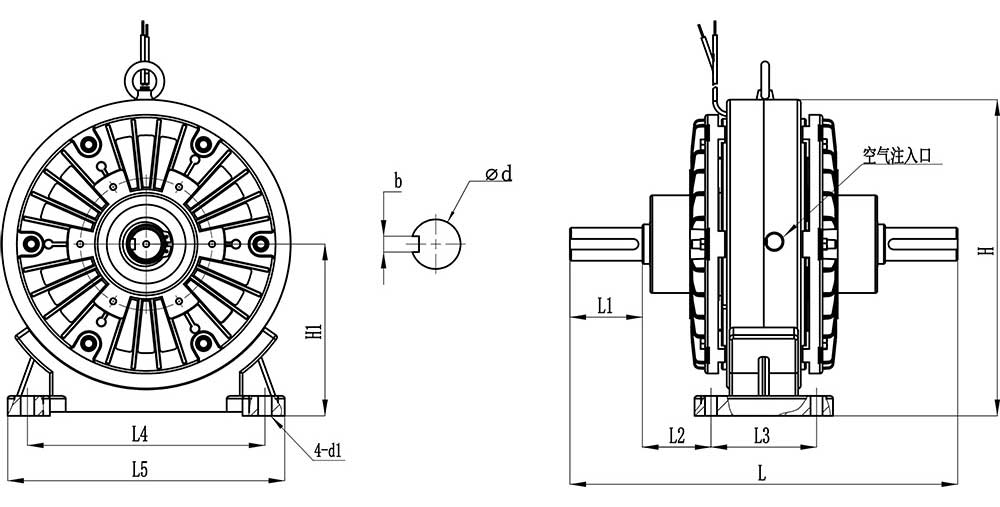

MPC-S Magnetic Particle Clutches

Model	Rated torque(N.m)	Exciting current(A)	Allowable slip power(KW)	Weight(kg)	d	d1	H	H1	L	L1	L2	L3	L4	L5	b
MPC-S-0.2	2	0.6	0.026	6.5	12	9	144	80	155	30	12.5	70	120	140	4
MPC-S-0.6	6	0.9	0.065	7.5	12	9	144	80	155	30	12.5	70	120	140	4
MPC-S-1.2	12	1	0.085	9	15	9	166	90	190	30	20	70	155	180	5
MPC-S-2.5	25	1.5	0.12	10	20	9	211	120	220	43	37	60	165	200	6
MPC-S-5	50	2.3	0.3	15	25	11	240	130	278	60	40.5	84	192	224	8
MPC-S-10	100	2.5	0.46	42	30	11	314	170	344	65	52	110	255	314	8
MPC-S-20	200	2.5	0.7	65	35	13	367.5	200	365	65	50	135	285	340	10
MPC-S-40	400	3	1	105	45	13	417.5	220	460	95	78	220	300	380	14
MPC-S-100	1000	3	2.5	200	65	17	/	530	612	100	/	220	430	500	18

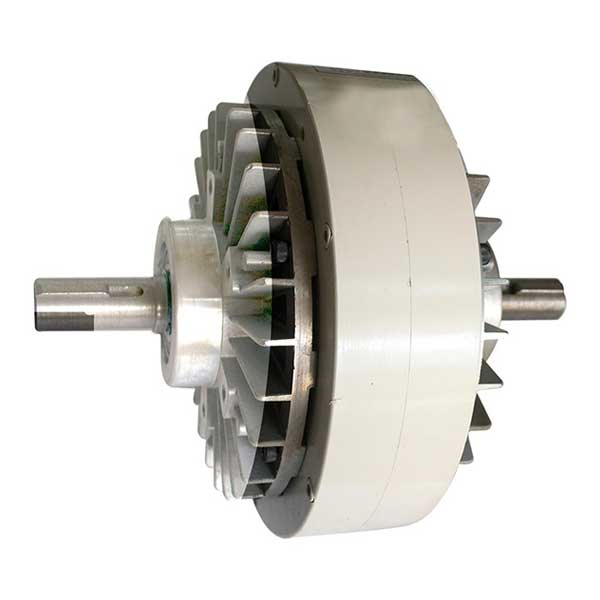

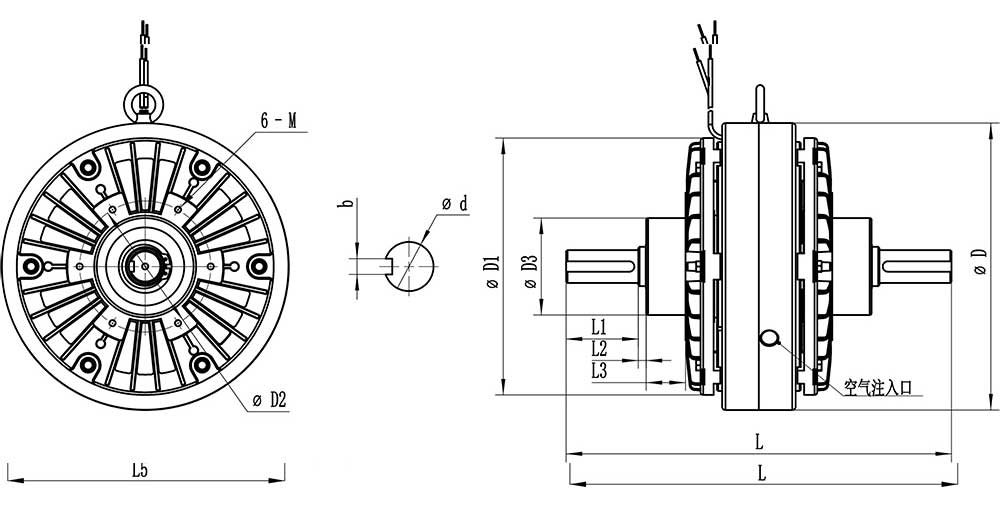

MPC-F Magnetic Particle Clutches

Model	Rated torque(N.m)	Exciting current(A)	Allowable slip power(KW)	Weight(kg)	d	D	D1	D2	D3	L	L1	L2	M	b
FL-0.2	2	0.6	0.026	6.5	12	134	78	65	42	158	30	18	6	4
FL-0.6	6	0.9	0.065	7.5	12	134	78	65	42	158	30	18	6	4
FL-1.2	12	1	0.085	9	15	152	80	65	50	190	30	20	6	5
FL-2.5	25	1.5	0.12	10	20	182	95	78	62	220	43	20	6	6
FL-5	50	2.3	0.3	15	25	220	120	100	74	278	60	23	6	8
FL-10	100	2.5	0.7	42	30	288	160	140	100	344	65	30	10	8
FL-20	200	2.5	0.7	65	35	335	174	150	110	365	65	35	10	10
FL-40	400	3	1	105	45	395	230	200	130	460	95	36	12	14
FL-100	1000	3	2.5	200	65	520	/	475	440	612	100	237	16	18

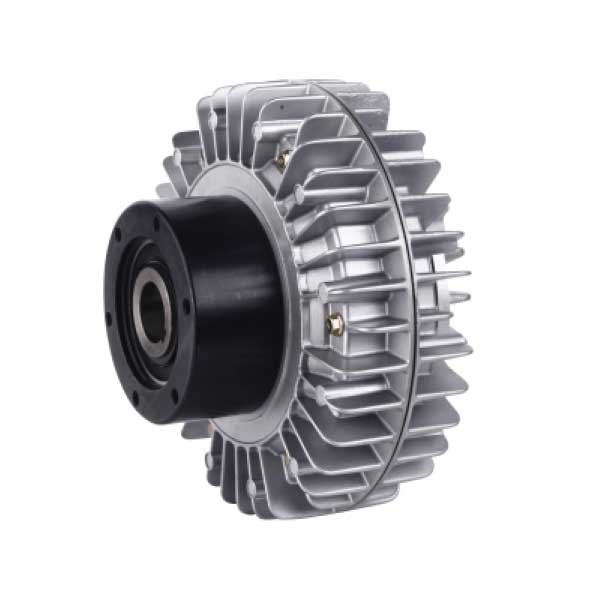

MPC-H1 Magnetic Particle Clutches

Model	Rated torque(N.m)	Slip power(KW)	Max current(A)	Max speed (rpm)	D	L	d(H7)	b(F8)	L1	L2	L3	D1	D2(g7)	D3	D4	n1-d1*深度	n2-d2*深度
FLKF-0.6	6	95	1	1500	120	97	16	5	24	4	/	72	59	53	62	6-M5*14	6-M4*6
FLKF-1.2	12	140	0.94	1500	15	108	20	6	26	3	3	80	69	60	74	6-M5*14	6-M4*7
FLKF-2.5	25	220	1.24	1500	182	128	25	8	30	10	4	97	80	71	82	6-M5*14	6-M5*10
FLKF-5	50	330	2.15	1500	219	150	30	8	36.5	9	4	110	95	85	97	6-M8*12	6-M6*11
FLKF-10	100	480	2.4	1500	220	273	35	10	44	14	/	145	125	110	127	6-M8*16	6-M8*15
FLKF-20	200	750	2.63	1000	327	237	45	14	52	17	/	170	140	125	145	6-M10*20	6-M8*17

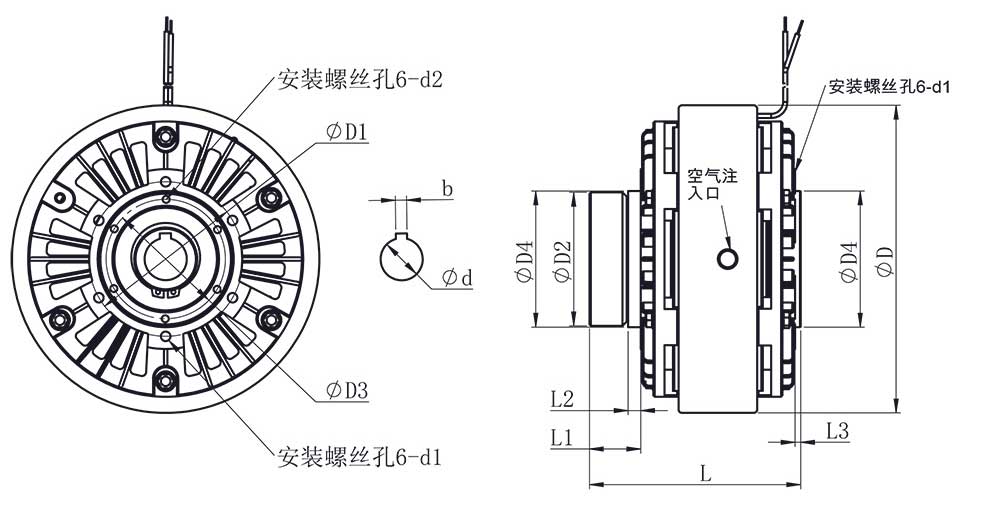

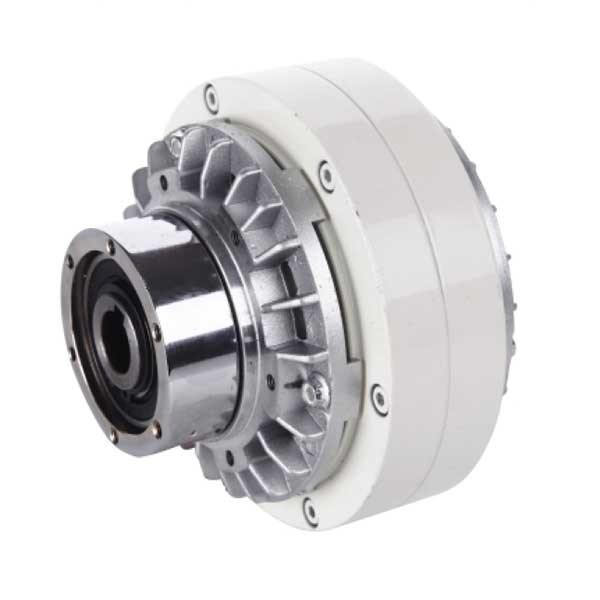

MPC-H2 Magnetic Particle Clutches

Model	Rated torque(N.m)	Slip power(KW)	Max current(A)	Max speed (rpm)	D	L	d(H7)	b(F8)	L1	L2	L3	D1	D2(g7)	D3	D4	n1-d1*深度	n2-d2*深度
FLKF-0.6	6	95	1	1500	120	97	16	5	24	4	/	72	59	53	62	6-M5*14	6-M4*6
FLKF-1.2	12	140	0.94	1500	15	108	20	6	26	3	3	80	69	60	74	6-M5*14	6-M4*7
FLKF-2.5	25	220	1.24	1500	182	128	25	8	30	10	4	97	80	71	82	6-M5*14	6-M5*10
FLKF-5	50	330	2.15	1500	219	150	30	8	36.5	9	4	110	95	85	97	6-M8*12	6-M6*11
FLKF-10	100	480	2.4	1500	220	273	35	10	44	14	/	145	125	110	127	6-M8*16	6-M8*15
FLKF-20	200	750	2.63	1000	327	237	45	14	52	17	/	170	140	125	145	6-M10*20	6-M8*17
