Sealed Water Jacket Cooled Motor For Furnace
Water Jacket Cooled Motor
Water jacket cooled motor is an electric motor that utilizes a water jacket surrounding the motor to maintain a consistent operating temperature. The water jacket is a closed-loop system that circulates cool water around the motor, absorbing the heat generated by the motor and dissipating it into the surrounding environment. In this article, we will explore the benefits and applications of water jacket cooled motors.

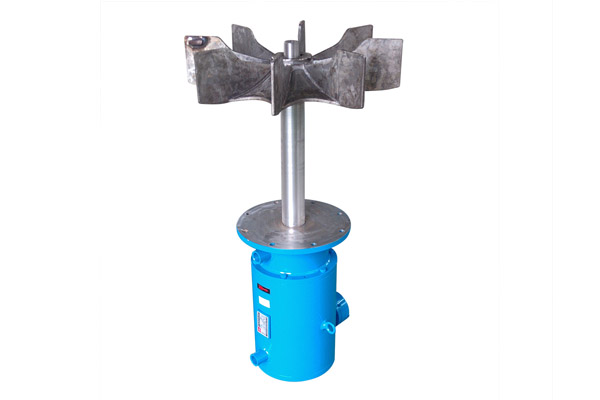

YGRM Water Jacket Cooled Motor
YGRM series sealed water jacket cooled motors for high-temperature furnaces are single-speed motors. Both the base and the flange end cover are water-cooled. The motor can withstand the operating conditions of the furnace temperature of 950°C. The high-temperature motors for furnaces have good sealing performance and the ultimate vacuum can reach 0.13pa.
YGRM water jacket cooled motors for high-temperature furnaces are suitable for carburizing furnaces, annealing furnaces, tempering furnaces, etc. The rated voltage of the motor is 380V, the rated frequency is 50Hz, the number of poles of the motor is 4 poles, and the power is 0.75-37KW.
The insulation grade of sealed water jacket cooled motors for high-temperature furnaces is Class F; the working system of furnace motors is continuous duty S1. The protection grade of the motors is IP65; the installation type of the motors is V3.

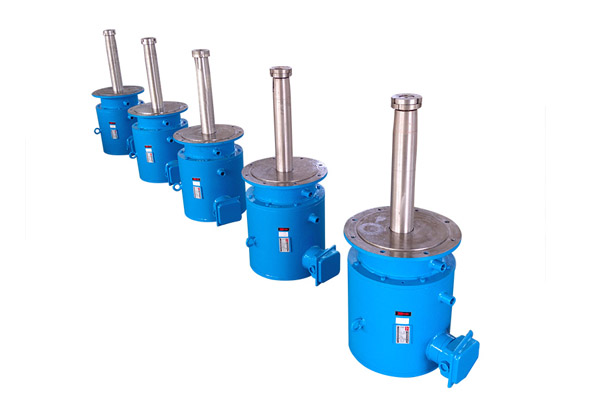

Sealed water jacket cooled motor for YGMD series bell annealing furnace
YGMD Water Jacket Cooled Motor
YGMD series bell-type annealing furnace sealed water jacket cooled motor is suitable for bell-type bright annealing furnaces and is suitable for gloss annealing treatment equipment for copper and steel under inert gas protection. The high-temperature motor for heat treatment furnaces has the characteristics of small size, light weight, reasonable performance, high reliability, and convenient use and maintenance.
The sealed water jacket cooled motor for YGMD series bell annealing furnace is an improved type of YGKT series. It integrates water cooling and sealing. The water tank outside the bell furnace can be removed. The end cover and machine base of the motor are cooled by water, type forming a sealed whole with the bright annealing furnace.

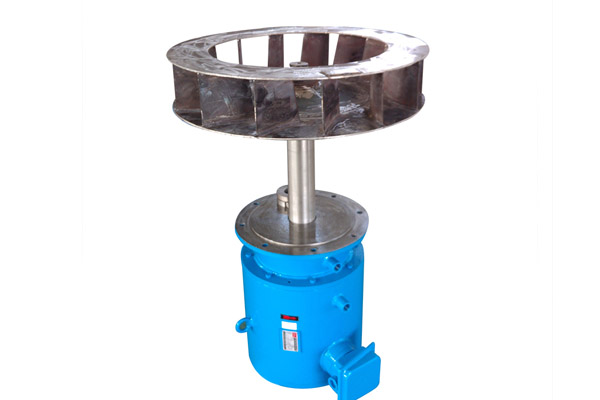

Frequency Conversion Speed Regulation Water Jacket Cooled Motor
YGMP Water Jacket Cooled Motor
YGMP series high-temperature furnace sealed frequency conversion speed regulation water jacket cooled motor, the motor is 4 poles, the frequency converter is used for power supply, and the control system composed of frequency conversion speed regulation device can make the motor obtain smooth stepless speed regulation. The structure of the motor is sealed and water-cooled.
The working characteristics of the motor: 5~50Hz is constant torque, 50~100Hz is constant power. The speed of the motor can be adjusted in the range of 50~100Hz.
The insulation class of the YGMP frequency conversion speed regulation water jacket cooled motor is Class F: the working system of the motor is continuous duty S1: the protection class of the motor is IP65, and the installation type of the motor is V3.

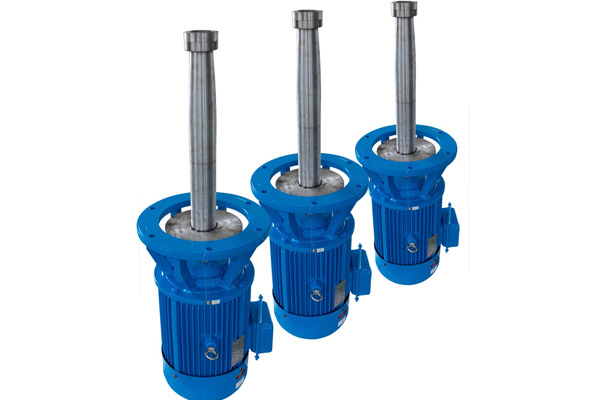

YGKT Bell Annealing Furnace Motor
YGKT series three-phase asynchronous bell annealing furnace motor is suitable for strong convection circulation bell annealing furnace, used in conjunction with the water cooling box of bell annealing furnace, and is suitable for gloss annealing equipment for copper and steel under the protection of inert gas. The electric motor for heat treatment furnace has the characteristics of small size, light weight, reasonable performance, high reliability, and convenient use and maintenance.
YGKT series bell-type annealing furnace with two-speed bell annealing furnace motor adopts imported bearings and high-temperature-resistant grease, which is suitable for the high-temperature environment of bell-type annealing furnace. The interior of the high-temperature furnace motor is ventilated and cooled, and a PTC thermistor is embedded at the end of the winding, which is connected to a temperature controller (supplied to the user along with the motor) to control and protect the temperature of the motor during operation.
The motor used in the YGKT series bell annealing furnace is a pole-changing variable-speed motor, the motor is 8/4 poles, 4 poles 2Y connection, 8 poles Y connection, the motor starts at a low speed, and the poles are changed when the furnace temperature reaches 200°C. Run at high speed.

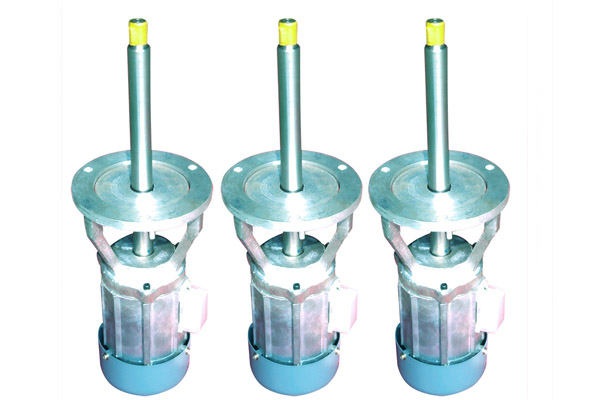

YGKP Bell Annealing Air Colled Furnace Motor
YGKP series bell-type annealing furnace air cooled frequency conversion speed regulation motor, the furnace motor is 4 poles, using frequency converter for power supply, and the control system composed of frequency converter speed regulating device can make the motor smooth and step-less speed regulation, which meets the process requirements of electric furnace. The furnace is cooled by a high-temperature furnace motor plus a special fan for frequency conversion and speed regulation and is used in conjunction with the water-cooled box of the bell-type furnace.
The working characteristics of the furnace motor: 5-50Hz is constant torque, 50-100Hz is constant power. The speed of the motor can be adjusted within the range of 50-100Hz.
The insulation class of the furnace motor is F; the duty of the motor is continuous duty S1; the protection class of the motor is IP23; the installation type of the motor is V3.

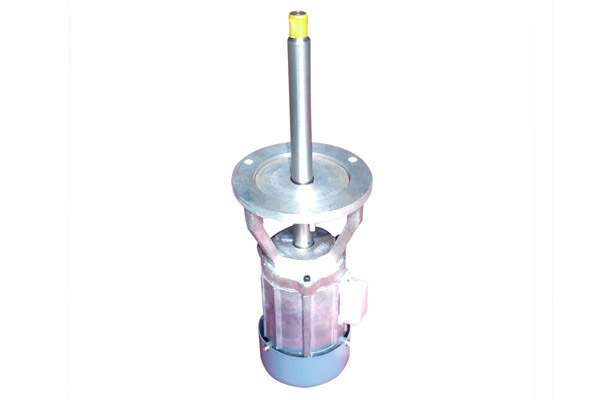

YGRK Air-Cooled Well-Type Furnace Motor
YGRK series air-cooled well-type furnace motors are used for internal circulation ventilation of well-type tempering furnaces and annealing furnaces with low temperatures (300°C) and low sealing requirements. The flange end cover of the motor is a bracket structure with a built-in cooling fan. The high-temperature well-type furnace motors motor has a simple structure and is easy to use and maintain. This series of motors are single-speed motors.
The rated voltage of the furnace motor is 380V, and the rated frequency is 50Hz. The number of poles of the motor is 4 poles, and the power is 0.75-15kW.
The insulation class of the motor is Class F; the duty of the motor is continuous duty S1; the protection class of the motor is IP44; the installation type of the motor is VI, B5.
