Top 6 Applications and Characteristics of Hollow Shaft Magnetic Particle Brakes

  • by

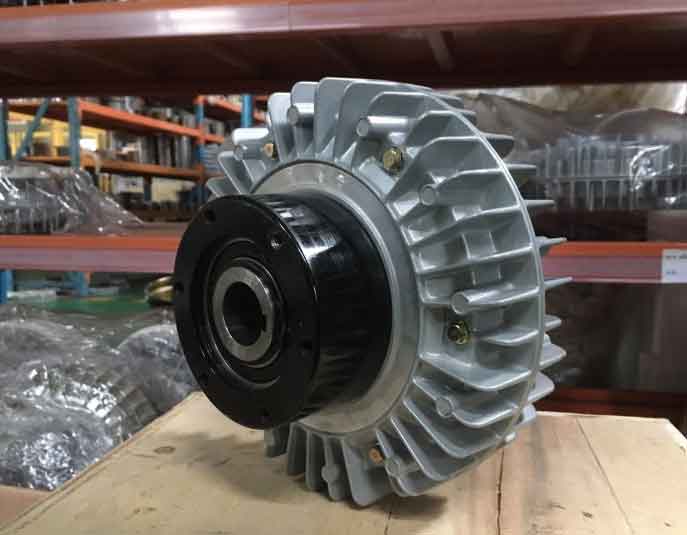

Magnetic Particle Brake for Textile Machines

Magnetic Particle brakes play a vital role in various industrial applications, providing precise control over torque and tension. Among these, the hollow shaft magnetic Particle brake stands out as a versatile and efficient component.

A hollow shaft magnetic Particle brake is a type of electromagnetic brake used for controlling the rotation of a shaft or controlling tension in a web or wire. It consists of a stator, rotor, and a hollow shaft passing through its center. The stator is stationary, while the rotor is connected to the hollow shaft.

When an electrical current is applied to the stator windings, it generates a magnetic field that interacts with the magnetic particles inside the rotor. This interaction results in a resistance to the rotation of the hollow shaft, allowing for precise control of torque and tension.

Top 7 Characteristics of Hollow Shaft Magnetic Particle Brakes

  1. Adjustable Torque: One of the key characteristics of hollow shaft magnetic Particle brakes is their ability to provide adjustable torque. By varying the current supplied to the stator, the braking torque can be precisely controlled to meet the requirements of the application.
  2. Smooth and Controllable Operation: These brakes offer smooth and precise control over torque, making them ideal for applications where delicate materials or processes require careful handling.
  3. No Wear and Tear: Unlike friction brakes, magnetic Particle brakes do not have physical contact between surfaces, resulting in minimal wear and tear. This extends their lifespan and reduces maintenance requirements.
  4. Compact Design: Hollow shaft magnetic Particle brakes are known for their compact design, making them suitable for space-constrained applications.
  5. Quick Response Time: These brakes offer rapid response times, allowing for swift adjustments to torque or tension as needed.
  6. High Torque-to-Size Ratio: They provide a high torque-to-size ratio, making them efficient and powerful for their size.
  7. Silent Operation: Magnetic Particle brakes operate quietly, contributing to a comfortable working environment.

Top 6 Applications of Hollow Shaft Magnetic Particle Brakes

  1. Printing Industry: In web-fed printing presses, these brakes are used to control the tension of paper or film as it moves through the press. Precise tension control is crucial for maintaining print quality.
  2. Textile Industry: Hollow shaft magnetic Particle brakes are employed in textile machinery to control the tension of threads or yarn during various manufacturing processes.
  3. Packaging Industry: Packaging machines use these brakes to control the tension of packaging materials, ensuring consistent and neat packaging.
  4. Wire and Cable Manufacturing: These brakes are used in wire and cable manufacturing to control tension during winding and spooling processes.
  5. Film and Foil Processing: In industries that process thin films and foils, such as the production of aluminum foil or plastic films, these brakes ensure precise tension control.
  6. Labeling Machines: Hollow shaft magnetic Particle brakes play a vital role in labeling machines, ensuring accurate label placement.

Conclusion

The hollow shaft magnetic particle brake is a remarkable component with a wide range of applications. Its adjustable torque, smooth operation, and compact design make it an ideal choice for industries where precise tension or torque control is essential. As technology continues to advance, magnetic Particle brakes are likely to find even more applications across various industries, contributing to improved efficiency and productivity.
