If you want to extract barite efficiently, you must make preliminary preparations

  • by
mineral processing

In order to efficiently extract barite from the ore, careful preliminary preparation is necessary. The key steps for barite concentrator testing and design include: ore property analysis, selection of  Mineral processing methods, preliminary design, environmental and economic benefit assessment, and design review and implementation. Through these steps, you can ensure that the mineral processing plant can meet production needs while taking into account environmental protection and economic benefits.

Ore property analysis

First, a detailed mineralogical analysis of the raw ore is required to understand the barite grade, particle size distribution, associated mineral types and content, etc. Barite ore property analysis is the basis for mineral processing design and process optimization. It involves detailed research on the physical, chemical and mineralogical properties of the ore, including particle size analysis, density determination, magnetic analysis, and X-ray fluorescence spectroscopy (XRF). , multi-element analysis, microscopy, etc.

When analyzing ore properties, the accuracy and reliability of the analysis method should be ensured, while possible errors and deviations in the analysis process should be taken into account.

Mineral processing
Mineral processing

Selection of mineral processing methods

The barite Mineral processing exploratory test is to determine the appropriate Mineral processing and conditions to effectively extract high-grade barite concentrate from the raw ore. According to the properties of the ore, select the appropriate mineral processing method. Common mineral separation methods include hand separation, gravity separation, flotation, magnetic separation and the combined use of these methods. For example, residual barite mines usually prefer gravity separation; while sedimentary and hydrothermal barite mines may need to be combined with flotation.

Before actual production, laboratory or semi-industrial scale experiments are usually required to verify the effectiveness of the mineral processing process and optimize process parameters.

Preliminary design

After collecting the above information, the preliminary design of the barite concentrator can be carried out. This stage mainly includes three parts: process flow design, equipment selection, and plant design.

Process design

Design a specific mineral processing process, including crushing, screening, washing, desliming, gravity separation, flotation, magnetic separation and other steps. For example, the gravity selection process may include jaw crusher crushing, vibrating screen screening, jig gravity selection, etc.; the flotation process may include stirred tank flotation, flotation machine flotation, etc.

Equipment selection

On this basis, according to the process flow and test results, the performance requirements of the required equipment, such as processing capacity, particle size requirements, sorting efficiency, etc., are selected, and appropriate mineral processing equipment is selected, such as jaw crushers, circular vibrating screens, and jigs. machine, flotation machine, magnetic separator, etc. At the same time, the specifications and quantity of equipment are determined based on the design capacity and process flow of the mineral processing plant.

During the entire selection process, equipment reliability, energy efficiency, maintenance costs, and compatibility with existing processes should be fully considered. At the same time, you should work closely with experienced mining engineers and equipment suppliers to ensure that the selected equipment can meet the long-term production needs of the mineral processing plant.

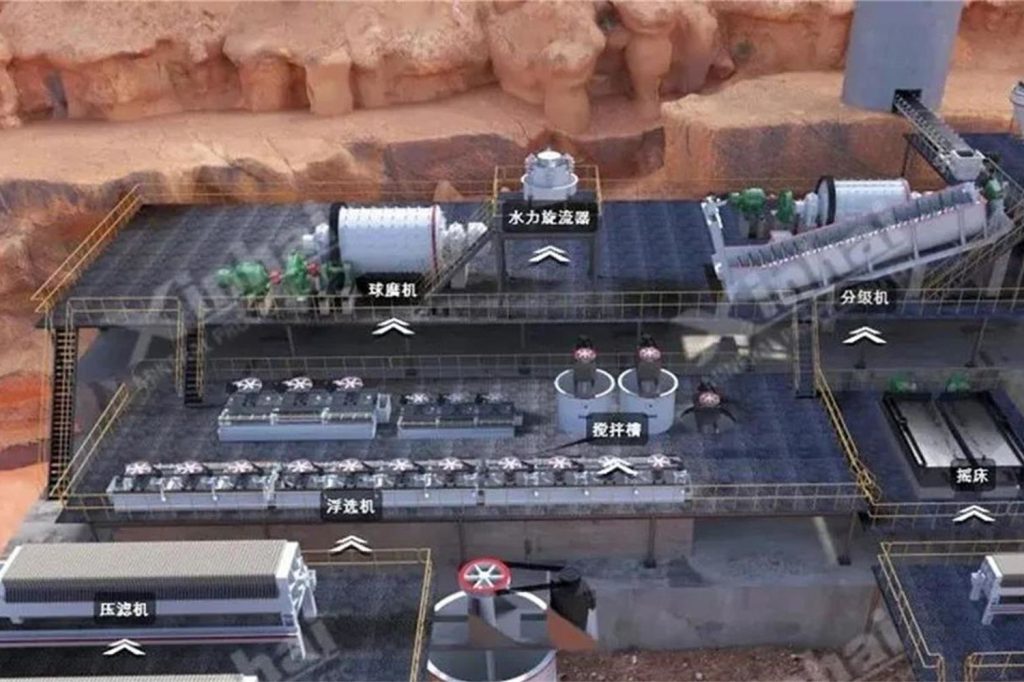

Factory design

The layout design of the barite concentrator plant is a key link to ensure production efficiency, safety and environmental protection. At this stage, it is necessary to clarify the sequence and interrelationship of each production stage according to the mineral processing process, and understand the size, weight, operating height, inlet and outlet location of all equipment, as well as the special requirements for the environment, while ensuring that the equipment layout complies with safety Standard, operators can easily monitor and maintain. Consider emergency evacuation routes and safety features.

Material flow paths should also be optimized during design to reduce unnecessary handling and transfers and improve logistics efficiency. Consider storage areas for raw materials, intermediate products, and finished products, and rationally arrange public facilities such as electricity, water, and gas to ensure stable supply and easy maintenance. In addition to the production area, it is also necessary to plan the location of auxiliary facilities such as offices, lounges, canteens, and warehouses to ensure the convenience of employees’ work and rest.

When designing the factory layout, you should work with a professional architectural design team to ensure that the design not only meets production needs, but also complies with building regulations and safety standards. At the same time, the impact of local climate, geological conditions and other natural factors on the layout of the factory should be taken into consideration.

Environmental and economic benefit assessment

In addition to technical aspects, environmental protection and production safety requirements also need to be considered during the design process to ensure that the mineral processing process complies with relevant regulations and standards. At the same time, the economic benefits of the mineral processing design must also be evaluated, including equipment investment, operating costs, energy consumption, water resource utilization efficiency, etc., to ensure the economic feasibility of the mineral processing plan.

05Design review and implementation

After completing the preliminary layout design, it needs to be reviewed and optimized to ensure that all designs are consistent with the actual conditions and expected goals of the mine, and then proceed to the next step.


The above is what you should know about the initial construction of a barite Mineral processing plant. In actual production, the specific Mineral processing design should be carried out by professional mining engineers or bMineral processing experts based on actual conditions to ensure the efficiency and economy of the Mineral processing
