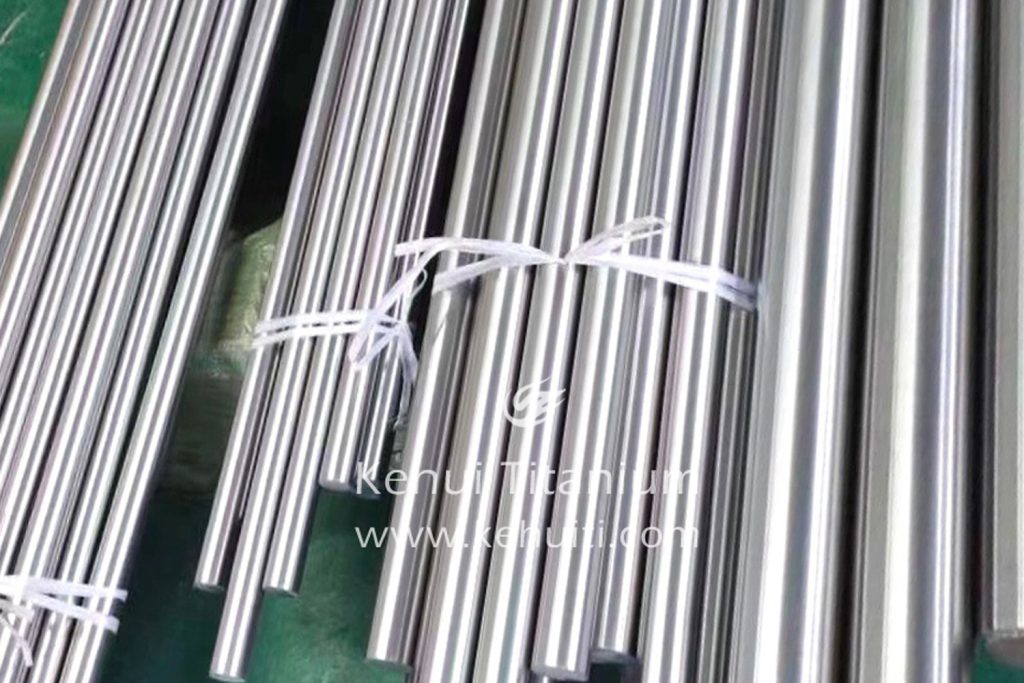

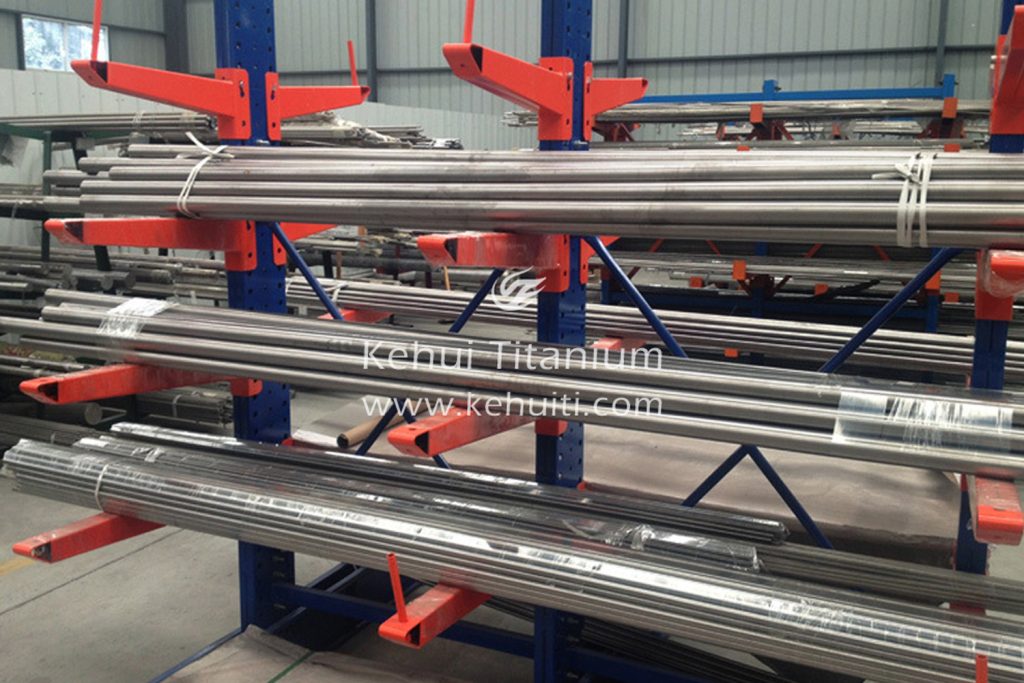

Medical titanium rod

  • by
Medical titanium rod
  • National standard number: TA1, TA2, TA3, TA7, TA9, TA10, TC4, TC4ELI, TC6, TC9, TC10, TC11
  • American label number: GR1, GR2, GR3, GR5, GR7, GR12
  • National standard: GB/T2965-2007, GB/T13810, Q/BS5331-91
  • American Standard: ASTM B348, ASTM F136, ASTM F67, AMS4928
Medical titanium rod

Reference standards

  1. GB 228 metal tensile test method
  2. GB/T 3620.1 titanium and titanium alloy number and chemical composition
  3. GB/T3620.2 Chemical Composition and Composition Permissible Deviation of Titanium and Titanium Alloy Processing Products
  4. GB 4698 Sponge titanium, titanium and titanium alloy chemical analysis method
Medical titanium rod

Technical requirements

  1. The chemical composition of titanium and titanium alloy rods shall comply with the provisions of GB/T3620.1. When repeated inspections are required, the allowable deviation of the chemical composition shall comply with the provisions of GB/T 3620.2.
  2. The diameter or side length of the hot-processed bar and its allowable deviation should meet the requirements in Table 1.
  3. The allowable deviation of the diameter of the cold-drawn bar should comply with the provisions in Table 2 after the hot-working (grinding) bar and cold-rolled.
  4. The out-of-roundness of the turned (polished) bar after thermal processing should not exceed half of its dimensional tolerance.
  5. The indeterminate length of the processed bar is 300-6000mm, and the indeterminate length of the annealed bar is 300-2000mm. The fixed length or double length should be within the range of the indeterminate length. The allowable deviation of the fixed length is +20mm ;The double length should also be included in the incision amount of the bar, and each incision is 5mm. The fixed length or double length should be specified in the contract.

Medical titanium rod

  • Specifications: rolling ￠8.0—40mm×L; forging ￠40—150mm×L
  • Metallographic structure: the grain size of pure titanium is not less than grade 5, and the TC4 titanium alloy conforms to A1-A9.
  • Surface: black leather surface, polished surface, polished surface (H11, H9, H8)
  • Medical titanium rod performance (refer to the implementation standard: GB/T13810-2007, ASTM F67/F136).
