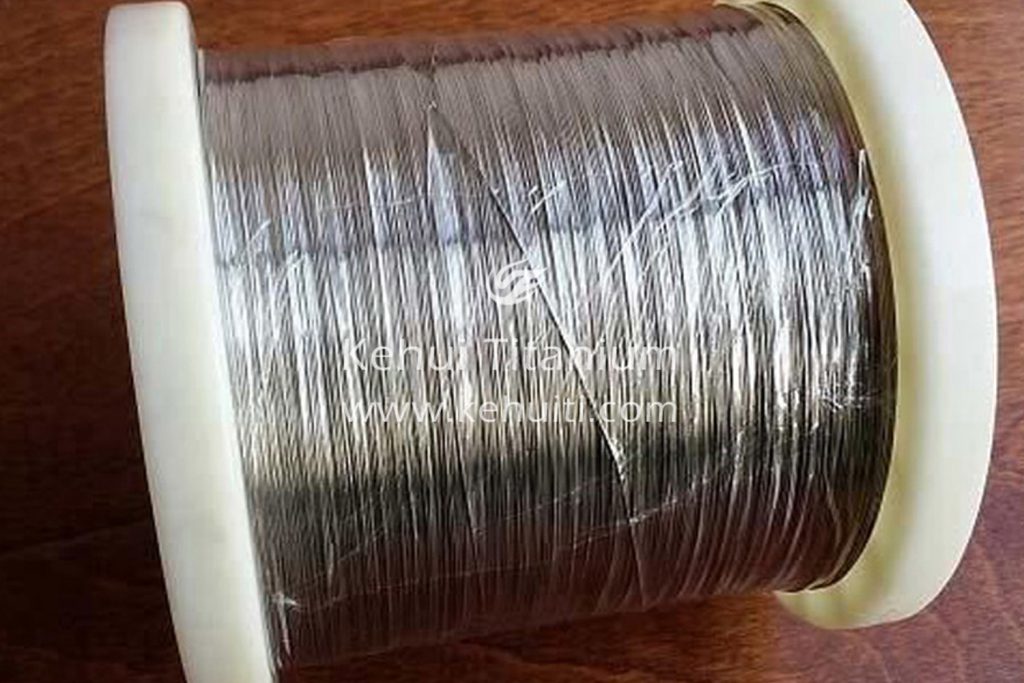

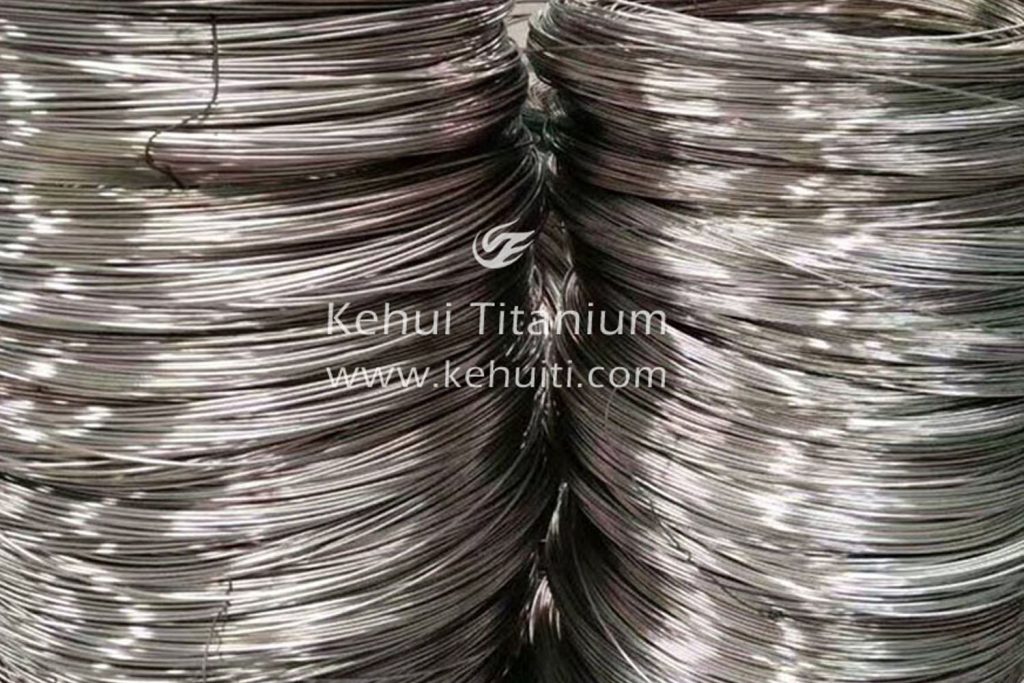

| product name | Titanium wire |
| Grade/Material | TA0,TA1,TA2,TA3,TA4,TA5,TA6,TA7,TA9,TA10,TC4，TC6,TC11,GR1，GR2，GR3，GR5 Ti6AL4V ELI,Ti6AL7Nb,Ti13Nb13Zr,Ti1533 |
| standard | GB/T3623，ASTM B863, ASTM B348、ASTM F67 ，ASTM F136 AMS4951-2003 Industrial pure titanium welding wire AMS4954-2003 Ti-6Al-4V alloy welding wire |
| Specification | A. Specification of titanium wire: φ0.8-φ6.0mm B. Specification of titanium wire for glasses: φ1.0-φ6.0mm special titanium wire C. Titanium wire specification: φ0.2-φ8.0mm special for hanger D. Welding wire specification : 2.0mm, 2.5mm, 3.0mm |
| surface | pickling, bright, |
| characteristic | Light weight, excellent corrosion resistance, corrosion resistance, high strength, good heat resistance, good ductility, non-toxic, non-magnetic, excellent mechanical strength, etc. |
| state | Annealed state (M) Hot processed state (R) Cold processed state (Y) (annealed, ultrasonic flaw detection) |
| application | Military, medical, sporting goods, glasses, earrings, headgear, electroplating hangers, welding wire and other industries. |
Classification, type and application of titanium wire
- Titanium wire —— pure titanium titanium wire, the grades are generally TA1, TA2, TA3, TA4, and the American Standard grades are Gr1, Gr2, Gr3, Gr4.
- Titanium alloy wire —— the grades are generally TA11, TA9, TA10, TC4, and the American Standard grades are Gr7, Gr12, Gr5.
- Pure titanium spectacle wire —— pure titanium spectacle wire, which is used as the raw material for spectacle brackets.
- Titanium straight wire —— Compared with the coiled state of ordinary coil wire, titanium straight wire is in a thin stick shape without bending.
- Titanium welding wire —— the welding material used for welding titanium materials. Generally, titanium welding wire is used for welding and connecting materials of the same grade. At present, more than 80% of titanium and titanium alloy wires are used as welding wires, such as welding of various titanium equipment, welded pipes, Repair welding of turbine disks and blades of aviation jet engines, welding of casings, etc.
- Titanium Hanging Wire —— Used for load-bearing, hanging wire for heavy use.
- Titanium Coiled Wire —— Compared with titanium straight wire, titanium coiled wire is coiled.
- Titanium bright wire —— The surface of titanium wire is bright titanium wire, which is used in scenes that require a bright surface and no oxide film.
- Medical titanium wire —— titanium wire for medical use, titanium wire that meets the medical grade standard, can be implanted in the body without toxins, and has no rejection. Titanium wire with strong bio-affinity is used to make medical devices and implant human teeth. Crown fixation, skull fixation, etc.
- Titanium-Nickel Alloy Wire —— There are many kinds of alloys of titanium and nickel. It is commonly used as a memory alloy material such as titanium-nickel alloy wire, which is used to make satellite antennas, shoulder pads for clothes, women’s bras, glasses frames, etc.
In addition, due to its excellent corrosion resistance, titanium wire has been widely used in chemical, pharmaceutical, paper and other industries, and can be woven into a mesh as a seawater filter, pure water filter, chemical filter, etc. It is also used to make fasteners, load-bearing components, springs, etc. In the electroplating and water treatment industries, titanium and titanium alloy wires are used to make various electrodes.
2、Chemical Composition Reference
| Titanium and titanium alloy grades and chemical composition | ||||||||||||||||
| Alloy grade | main ingredient | Impurities, not more than | ||||||||||||||
| Ti | Al | V | Zr | Si | Cr | Fe | Pd | Mo | Ni | Fe | C | N | H | O | 其他元素 | |
| TA1/GR1 | margin | / | / | / | / | / | / | / | / | / | 0.15 | 0.10 | 0.03 | 0.015 | 0.15 | 0.4 |
| TA2/GR2 | margin | / | / | / | / | / | / | / | / | / | 0.25 | 0.10 | 0.03 | 0.015 | 0.20 | 0.4 |
| TA3/GR3 | margin | / | / | / | / | / | / | / | / | / | 0.30 | 0.1 | 0.05 | 0.015 | 0.25 | 0.4 |
| TA9/GR7 | margin | / | / | / | / | / | / | 0.12- 0.25 | / | / | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.40 |
| TA9-1/GR7 | margin | / | / | / | / | / | / | 0.12- 0.25 | / | / | 0.20 | 0.08 | 0.03 | 0.015 | 0.18 | 0.40 |
| TA10/GR12 | margin | / | / | / | / | / | / | / | 0.2- 0.4 | 0.6- 0.9 | 0.30 | 0.08 | 0.03 | 0.015 | 0.25 | 0.4 |
| TA18/GR9 | margin | 2.0- 3.5 | 1.5- 3.0 | / | / | / | / | / | / | / | 0.25 | 0.08 | 0.05 | 0.015 | 0.12 | 0.3 |
| TC4 | margin | 5.5- 6.5 | 3.5- 4.5 | / | / | / | / | / | / | / | 0.30 | 0.08 | 0.05 | 0.015 | 0.20 | 0.40 |
