product name

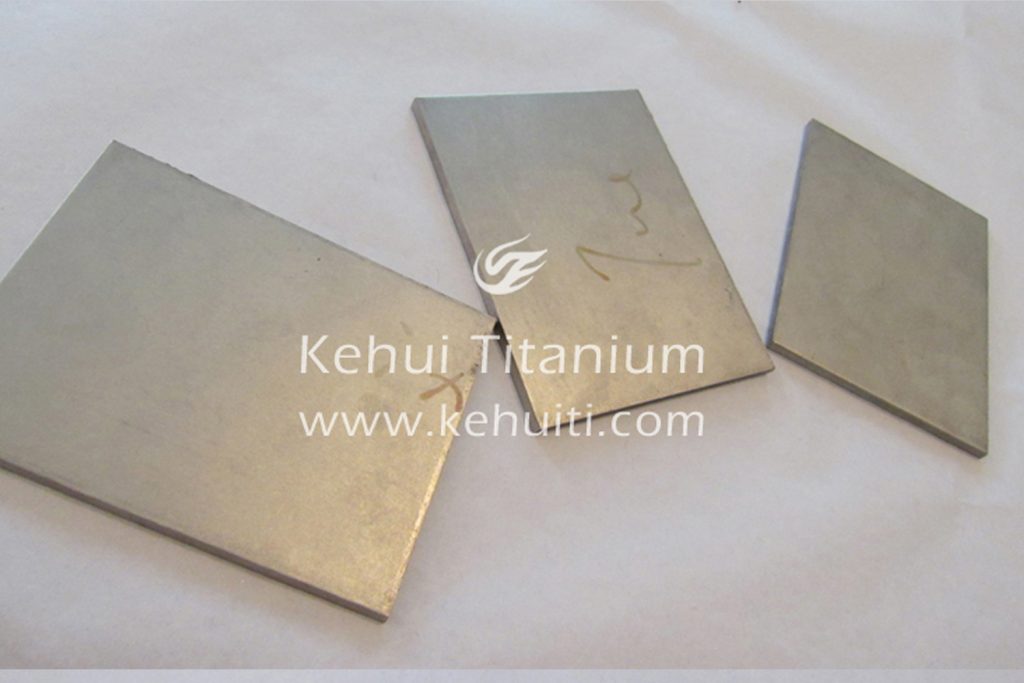

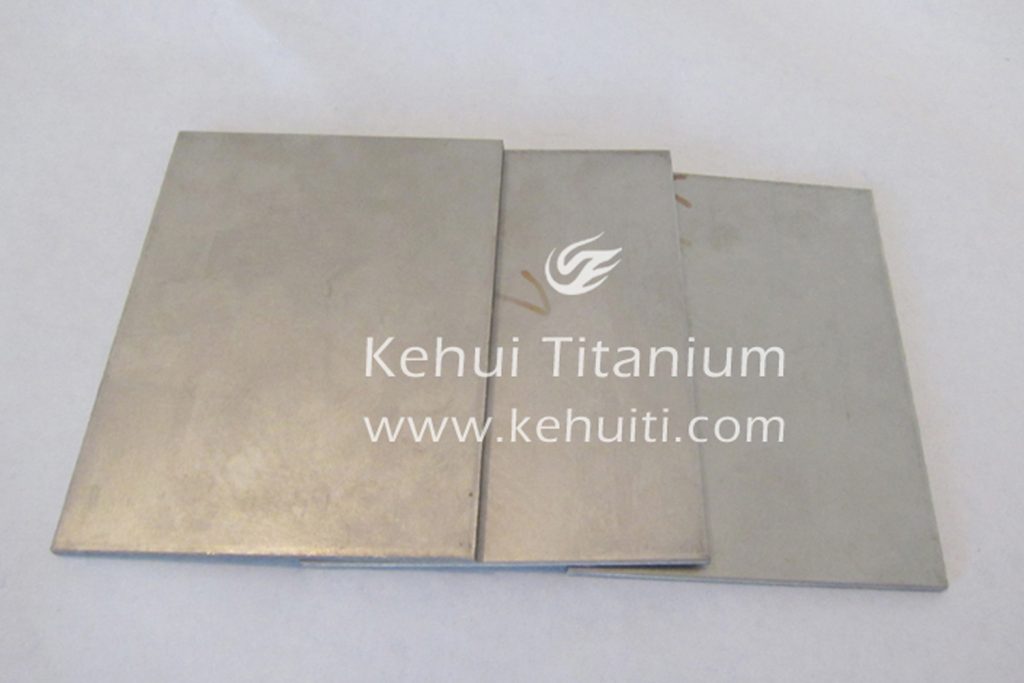

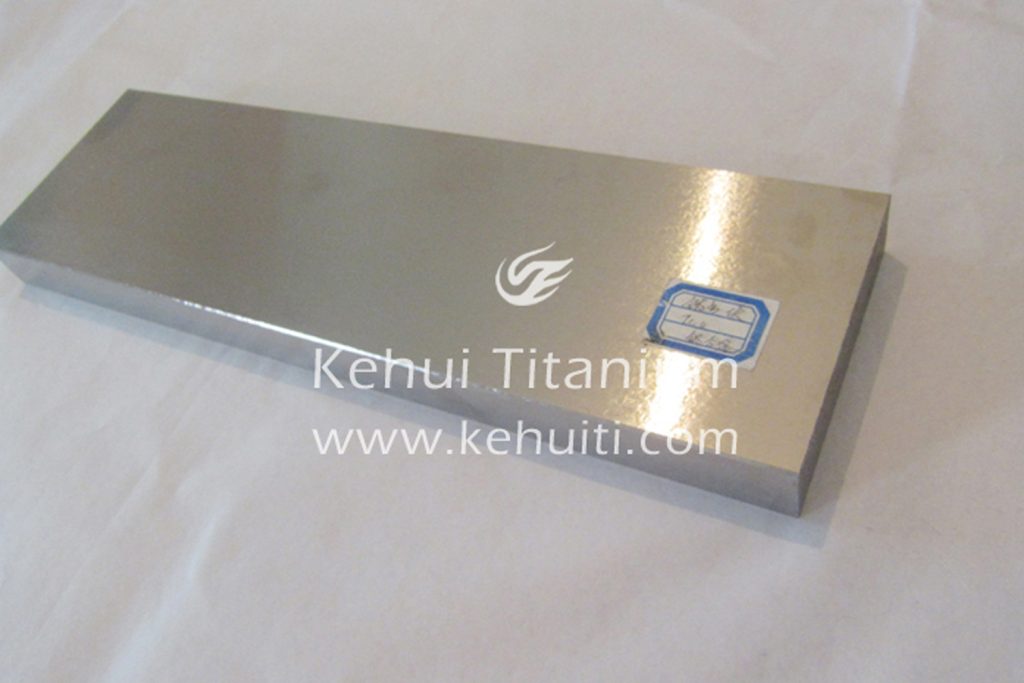

Titanium cake, titanium cube, titanium forging
material
domestic：TA1、TA2、TA3、TA4、TA9、TA10、TC4；
American Standard：GR1、GR2、GR3、GR4、GR5、GR7、GR11、GR12、GR23;
National standard：GB/T 16598-1996 Ti 6Al 4V、Ti-0.2Pd、Ti 0.3Mo 0.8Ni、Ti 3Al 2.5V、Ti 6Al 4V ELI;
American Standard：ASTM B348，ASTM B381，AMS 4928
Specifications
Outer diameter φ (200~400)Inner diameter φ(100~300)Height (20~120) Outer diameter φ(400~700)Inner diameter φ(150~500)Height (40~250) Outer diameter φ( 700~1500)inner diameter φ(300~1200)height (40~600)
Production process
Forging, die forging, rotary forging, precision forging, welding testing Tensile strength testing, hardness testing, chemical composition testing, ultrasonic testing, radiographic testing, penetration coloring testing. Surface Surface treatment: car polish, chamfering. Surface quality: the surface roughness Ra value of the two end faces should not be greater than 3.2lμm (subject to meeting the requirements of ultrasonic testing), the surface roughness Ra of the inner and outer sides should not be greater than 12.5μm (when the outer peripheral surface needs to be ultrasonically inspected Ra should not be greater than 3.2μm), and the chamfering radius is 5-15mm. . Application fields Aerospace, aviation, military industry, light industry, chemical industry, textile, medical treatment and petrochemical and other fields. the
Application
The surface roughness Ra of the inner and outer surfaces shall not be greater than 12.5 μm (the Ra shall not be greater than 3.2 μm when ultrasonic testing is required on the outer circumferential surface), and the chamfering radius shall be 5 to 15 mm. Application fields Aerospace, aviation, military industry, light industry, chemical industry, textile, medical treatment and petrochemical and other fields.
